8devices Habanero Development Board

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC1200)

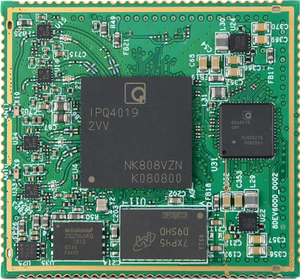

Habanero Development Board
Homepage Product page
WikiDevi.wi-cat.ru 8devices Habanero Development Board
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev 8devices Habanero Development Board
FCC ID (fcc.io) Z9W-HAB
FCC ID (fcc.report) Z9W-HAB
IC ID 11468A-HAB
Type development board, SoM
CPU1 checkY Qualcomm IPQ4019
CPU1 Type ARM Cortex-A7
CPU1 Speed 716 MHz ( 4 cores )
Flash1 Chip Brand? Model?
Flash1 Size 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br /> (Parallel SLC NAND)
Flash2 Chip Winbond W25Q256JVEQ
Flash2 Size 32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br />
RAM1 Size 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3L)
RAM1 Chip Winbond W634GU6MB-12
ETH chip1 Qualcomm IPQ4019
Switch Qualcomm QCA8075
Ethernet Port Count 1-1GbE-WAN
4-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: C4:93:00 (4 E, 3 W)
Ethernet OUI: C4:93:00 (4 E, 3 W)

Stock bootloader U-Boot
Stock FW OS Linux 4.14.113 OpenWrt r9932-13962b7
Expansion IF types Mini PCIe, USB 2.0, USB 3.0, eMMC module socket, microSD
Mini PCIe slots 1
USB ports 2
USB Hub Compatible Untested
Power 12-24 VDC, 1 A
Connector type barrel
5.5 mm (OD)
2.5 mm (ID)
9.5 mm (LEN)
Serial Port (UART) yes, (115200 8N1)

Flags:
Wave2, Micro SD Card slot, eMMC module socket, SPI, MU-MIMO, MIPI DBI, I2C, I2S, GPIO

Additional chips
2.4GHz Front End Module;RFMD;RFFM8228;;2;
5GHz Front End Module;RFMD;RFFM8528;;2;
DC/DC Converter IC;Texas Instruments;TPS54560;;1;
2A, 2V Non-Synchronous Buck Converter;Texas Instruments;TPS54231;;1;

Other

Default IP address: 192.168.1.1
the IP 192.168.1.1 is used by 1351 additional devices
of which 1 are 8devices devices
Default login user: root
Default login password: blank
root:blank credentials used by 82 additional devices
of which 0 are 8devices devices

3rd Party Firmware Support OpenWrt • (List | Dev | DLs)
Retail
FCC approval date 11 August 2020
Country of manuf EU
Radio 1
Radio1 module 8devices Habanero
Radio1 module IF module
Chip1 Qualcomm IPQ4019
Wireless interface OUI C4:93:00
Antenna Connector Type U.FL
MIMO status 2x2:2
Wireless Standard IEEE 802.11a/b/g/n/ac
802.11ac up to 867 Mbps
802.11n up to 300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 2.4 or 5 GHz

For a list of all currently documented Qualcomm chipsets with specifications, see Qualcomm.

For a list of all currently documented 8devices devices with specifications, see 8devices.

867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),
300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

Links of Interest

Flashing

Flashing OpenWrt

OpenWrt Target: ipq40xx
OpenWrt Subtarget: generic
OpenWrt Package architecture: arm_cortex-a7_neon-vfpv4
Supported Since Commit
Support started version: 21.02.0
Current supported version: 24.10.4
LAN Hardware: Qualcomm Atheros QCA8075
WLAN Hardware: Qualcomm Atheros IPQ4019
WLAN Comment: MIMO 2x2:2
Installation method(s):
Sysupgrade
Comment:
eMMC is an optional add-on via connector

Please insert instructions here
