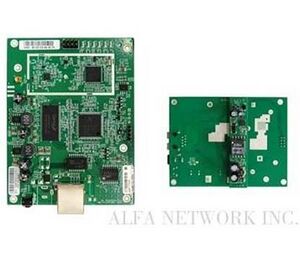

ALFA Network AP91-5G
From TechInfoDepot
Jump to navigationJump to searchan+ac (AC433) | |
|---|---|
| 802.11an Router Board | |
| 3rd Party Firmware | |
| dd-wrt |
Status Unknown |
| OpenWrt | |
| Tomato any flavor |
Incompatible |
| Gargoyle |
Status Unknown |
| Platform | |
| Brand • Model • Rev |
ALFA Network AP91-5G |
| FCC ID |
none specified |
| Type |
access point |
| CPU1 |
Atheros AR7240 |
| CPU1 Type |
MIPS 24Kc |
| CPU1 Speed |
400 MHz |
| Flash1 Chip |
Brand? Model? |
| Flash1 Size |
8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br /> |
| RAM1 Size |
32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br /> |
| RAM1 Chip |
Brand? Model? |
| ETH chip1 |
Atheros AR7240 |
| Ethernet Port Count |
1-100MbE-LAN |
| Wired Standard |
IEEE 802.3i/3u |
|
802dot11 OUI: none specified | |
| Stock bootloader |
U-Boot |
| Expansion IF types |
none specified |
| PoE |
Passive |
| Power |
? VDC, ? A |
| Serial Port (UART) |
yes |
| Other | |
|
| |
| 3rd Party Firmware Support | |
| Radio 1 | |
| Chip1 |
Atheros AR9280 |
| Wireless interface OUI |
none specified |
| Antenna Connector Type |
none specified |
| MIMO status |
1x1:1 |
| Wireless Standard |
IEEE 802.11a/n/ac |
| 802.11ac |
up to 433 Mbps |
| 802.11n |
up to 150 Mbps |
| 802.11a |
up to 54 Mbps |
| WiFi Operating Frequency |
5 GHz |
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented ALFA Network device with specifications, see ALFA Network.
- • 433 Mbps - 1SS 5GHz 802.11ac (80MHz chan.) = AC433 class
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
 | This device is NOT RECOMMENDED for future use with OpenWrt due to low flash/ram. DO NOT BUY DEVICES WITH 4MB FLASH / 32MB RAM if you intend to flash an up-to-date and secure OpenWrt version onto it! See 4/32 warning for details. |
| This device does not have sufficient resources (flash and/or RAM) to provide secure and reliable operation. This means that even setting a password or changing simple network settings might not be possible any more, rendering the device effectively useless. See OpenWrt on 4/32 devices what you can do now. |
| OpenWrt support for this device has ended in 2022. 19.07.10 was the last official build for 4/32 devices. |
On the OpenWrt ToH (techdata entry)
OpenWrt Target: ar71xx
OpenWrt Subtarget: generic
OpenWrt Package architecture: mips_24kc
Support started version: 18.06.0
Current supported version: 18.06.9
OpenWrt Target: ar71xx
OpenWrt Subtarget: generic
OpenWrt Package architecture: mips_24kc
Support started version: 18.06.0
Current supported version: 18.06.9
Please insert instructions here
