ASUS AAM6020VI-T4
From TechInfoDepot
Jump to navigationJump to search
bg (G54) | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADSL Wireless Modem Router | |||||||||||||||||
Wikipedia | Asus routers | ||||||||||||||||
WikiDevi.wi-cat.ru | ASUS AAM6020VI-T4 | ||||||||||||||||
3rd Party Firmware | |||||||||||||||||
dd-wrt | Incompatible | ||||||||||||||||
OpenWrt | Incompatible | ||||||||||||||||
Tomato any flavor | Incompatible | ||||||||||||||||
Platform | |||||||||||||||||
Brand • Model • Rev | ASUS AAM6020VI-T4 | ||||||||||||||||
FCC ID | MSQAAM6KVIT4, M4Y-0XG650 | ||||||||||||||||
Board ID | AAM6030VI-T2 | ||||||||||||||||
Type | wireless router, dsl modem | ||||||||||||||||
CPU1 ![]() | Texas Instruments TNETD7300 | ||||||||||||||||
CPU1 Type | MIPS 4KEc | ||||||||||||||||
CPU1 Speed | 150 MHz | ||||||||||||||||
Flash1 Chip | Macronix MX29LV320ABTC-90 | ||||||||||||||||
Flash1 Size | 4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br /> | ||||||||||||||||
RAM1 Size | 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> | ||||||||||||||||
RAM1 Chip | Samsung K4S281632F-TC75 | ||||||||||||||||
ETH chip1 | Texas Instruments TNETD7300 | ||||||||||||||||
Switch | Marvell 88E6060 | ||||||||||||||||
DSL Ports | 1 | ||||||||||||||||
Ethernet Port Count | 4-100MbE-LAN | ||||||||||||||||
Wired Standard | IEEE 802.3i/3u | ||||||||||||||||
Expansion IF types | Mini PCI | ||||||||||||||||
Mini PCI slots | 1 | ||||||||||||||||
Power | 15 VAC ~ 50/60 Hz, 0.7 A | ||||||||||||||||
Connector type | barrel | ||||||||||||||||
Serial Port (UART) | yes, 6-pad header | ||||||||||||||||
JTAG Port | yes, 8-pin header | ||||||||||||||||
Flags: ADSL2+ | |||||||||||||||||
Other | |||||||||||||||||
| |||||||||||||||||
Manuf/OEM/ODM | ASUS | ||||||||||||||||
Retail | |||||||||||||||||
Availability | End of Life | ||||||||||||||||
FCC approval date | 03 November 2005 | ||||||||||||||||
Country of manuf | China | ||||||||||||||||
Radio 1 | |||||||||||||||||
Radio1 module | Z-Com XG-650 | ||||||||||||||||
Radio1 module IF | Mini PCI | ||||||||||||||||
Chip1 | Texas Instruments TNETW1130 | ||||||||||||||||
Chip2 | Radia RC2422B | ||||||||||||||||
Wireless interface OUI | 00:60:B3 | ||||||||||||||||
Antenna Connector Type | U.FL | ||||||||||||||||
Wireless Standard | IEEE 802.11b/g | ||||||||||||||||
802.11g | up to 54 Mbps | ||||||||||||||||
802.11b | up to 11 Mbps | ||||||||||||||||
WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||
| |||||||||||||||||
|
For a list of all currently documented Marvell chipsets with specifications, see Marvell.
For a list of all currently documented Radia chipsets with specifications, see Radia.
For a list of all currently documented Texas Instruments (TI) chipsets with specifications, see Texas Instruments.
For a list of all currently documented ASUS devices with specifications, see ASUS.
- • 54 Mbps - 2.4GHz 802.11g = G54 class
Overview
- This device is part of the ASUS AAM6020VI series (RU)
"AAM6030VI-T2 REV: 1.00" and "PCB MADE IN CHINA" is silkscreened on the board.
- The power requirement for the device is 15VAC, 700mA, 50/60Hz.
This OUI for this device (wireless) is assumed to be 00:60:B3 (Z-Com).
Specifications
- ASUS AAM6020VI-T4 • ASUS AAM6030VI-T2 (PCB)
- CPU: Texas Instruments TNETD7300GDU
- RAM: Samsung K4S281632F (16MB SDRAM)
- WLAN: TI TNETW1130GVF (Z-Com XG-650)
- Switch: Marvell 88E6060 (PCB image) [00:60:B3]
Pictures
See also
- TI TNETD7300GDU (AR7RD) - FW Acorp LAN420M (Adam2)
- ASUS AAM6020VI-T4 • ASUS AAM6030VI-T2 (PCB)
- FCC ID: MSQAAM6KVIT4 (2005-11-03) • ADSL Wireless Modem Router
- ASUS AAM6020VI-B6 (6218-I2) • Product page
- FCC ID: MSQAAM6KVIB6 (2005-08-12) • 4-Port Wireless Ethernet Router
- ASUS WL-AM604g (AAM6020VI-B6) • Series
- ASUS AM200g (ASUS AAM6070TP-B2) • (ADSL/VoIP)
- FCC ID: MSQAAM6KTPB2 (2005-11-25) • Wireless ADSL Router
- ASUS AAM6020VI-DL1 (6218-I2) • D-Link DSL-2640U rev B2
- CPU: Broadcom BCM6348, WLAN: BCM4318, SW: BCM5325E
- ASUS AAM6020VI-PD1 (6218-I3) • FCC ID: MSQAAM6KVIPD1 (2007-07-19)
- CPU: Broadcom BCM6348S, WLAN: BCM4318, SW: BCM5325E
- ASUS AAM6020VI-F1 • 4-Port Ethernet Switch + Wi-Fi ADSL Router • Product page
- FCC ID: MSQAAM6KVIF1 (2005-11-04) • Infineon PSB 50505/ADM8262/ADM6996
- ASUS AAM6010EV (Z2) • TrendChip TC3085 (ADSL)
- ASUS AAM6010EV-M • Broadcom BCM6345 (ADSL)
- ASUS AAM6010EV-T4 • TI TNETD7300 (ADSL2+)
- ASUS AAM6000EV (G6/X1) • Conexant GS8120 (D-Link 500G)

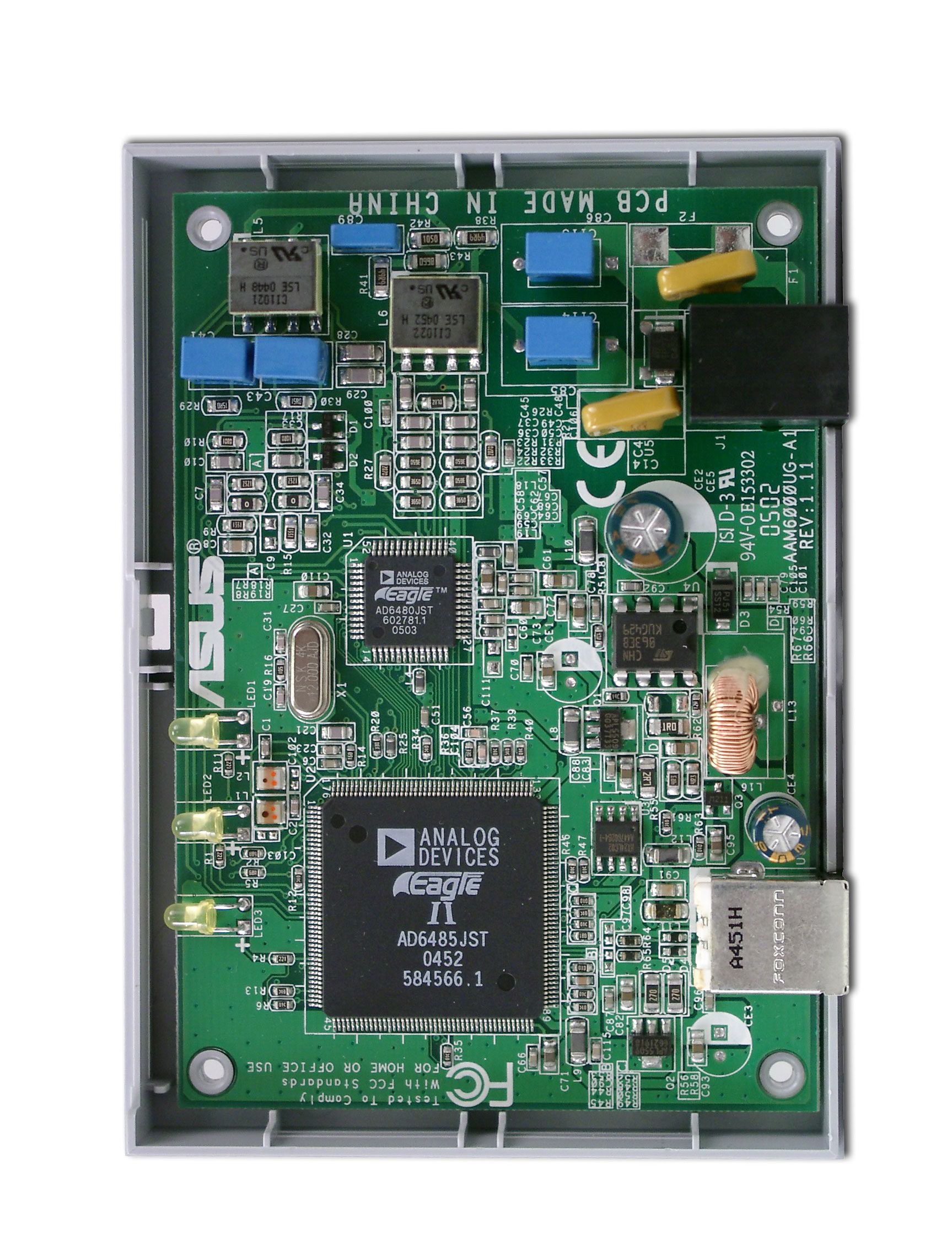

- ASUS AAM6000UG • ADSL USB Modem • Spec. (PCB)
- Analog Devices AD6480JST (ADSL)/AD6485JST (USB/Eth)
- Paradyne 6218-I2-200-0CC • FCC ID: MSQAAM6KVIB6 (2005-08-12)
- Paradyne 6218-I3-58BD • Wireless ADSL2+ Bonded CPE
- CPU: Broadcom BCM6358S, WLAN: BCM4318, SW: BCM5325E
- FCC ID: MSQAAM6KBDBX (2007-03-07)
