Acelink EW-7955MN
From TechInfoDepot


				Jump to navigationJump to search

				| bgn (N600) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 4T4R 802.11bgn 2.4GHz Single-Band Mini PCIe Module | ||||||||||
|
 | ||||||||||
| Homepage | Product page | |||||||||
| Platform | ||||||||||
| Brand • Model • Rev | Acelink EW-7955MN | |||||||||
| Interface | Mini PCIe | |||||||||
| Connector | Mini PCIe | |||||||||
| Form factor | module (oversized) | |||||||||
|
 ID:168c:0046  (1 addl. devices)   | ||||||||||
|
 | ||||||||||
| FCCID | 2AGR9KPWL0300 | |||||||||
|
 | ||||||||||
| Chip1 | Qualcomm Atheros QCA9984 | |||||||||
|
 OUI: none specified  | ||||||||||
| Antenna Connection | U.FL | |||||||||
| MIMO status | 4x4:4 | |||||||||
| Wireless Standards | IEEE 802.11b/g/n | |||||||||
| 802.11n | up to 600 Mbps | |||||||||
| 802.11g | up to 54 Mbps | |||||||||
| 802.11b | up to 11 Mbps | |||||||||
| Operating Frequency | 2.4 GHz | |||||||||
| Other | ||||||||||
| Manuf/OEM/ODM | Edimax EW-7955MN v1.0 | |||||||||
| UART | has accessible UART | |||||||||
|
 Additional chips  | ||||||||||
|
 Probable Linux driver  | ||||||||||
|
 Windows driver  | ||||||||||
| Retail | ||||||||||
| FCC approval date | 22 February 2017 | |||||||||
| Country of manuf | China | |||||||||
  | ||||||||||
  | ||||||||||
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.
For a list of all currently documented Acelink devices with specifications, see Acelink.
- • 600 Mbps - 4SS 2.4GHz 802.11n (40MHz chan.) = N600 class

Overview
FCC ID: 2AGR9KPWL0300 (02/22/2017) - Kpnetworks KPWL-300
See also: Acelink EW-7955MAC and Edimax
Product Overview
- Acelink EW-7955MN 802.11bgn 2.4GHz Solution:

- Acelink EW-7955MN is an 802.11b/g/n 2.4GHz Single-Band Mini PCI express module based
 - on Qualcomm Atheros QCA9984 chipset and Qualcomm Edison QFE1922 Front End Module.
 - The EW-7955MN supports 20/40MHz and 256-QAM to maximize bandwidth efficiency.
 - It supports 4T4R (4x4) technology, which runs up to 800Mbps.

- Secure Wireless Connection

- Incorporated with advanced security encryption, such as 64/128-bits WEP, WPA,
 - WPA2, and 802.1x, it helps prevent users’ devices from malicious attacks.

Specifications
- Host Interface: Mini PCIe
 - Standard: 802.11bgn
 - Operating Frequency: 2.4GHz
 - Chipset: Qualcomm Atheros QCA9984
 - Amplifiers: 2x 2.4GHz PA Edison QFE1922
 - Antenna Connectors: 4x iPEX (U.FL)

- Connectors reserved for 2.4GHz antenna

- Operating Voltage: DC 3.3V
 - Power Consumption: 6.62W
 - Dimensions: 48mm x 73mm

Links of Interest
- Acelink EW-7955MN 4T4R 802.11bgn Qualcomm Atheros QCA9984

- Likely used for wireless N clients (2x Qualcomm Edison QFE1922 PAM)

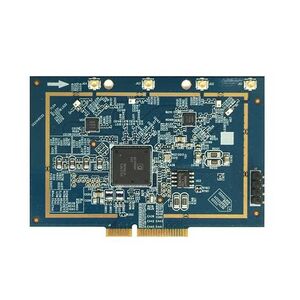

 - "1244-00001407-50Z_ES" and "1628" is silkscreened on the blue board.

- Acelink EW-7955MAC 4T4R 802.11an/ac Qualcomm Atheros QCA9984

- Likely used for wireless AC clients (4x SKY85405-11 PAM, black PCB)
 - "1244-00001046-50Z_ES" and "P/C=F64-113" is silkscreened on the board.

- Acelink EW-7944MAC 4T4R 802.11an/ac Qualcomm Atheros QCA9990

- Likely used for dedicated backhaul among access points.
