Actiontec 802DRN

From TechInfoDepot
Jump to navigationJump to search
abgn (AN900)
802.11n Wireless Network Module

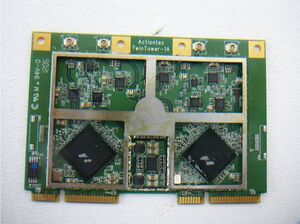

Actiontec TwinTower-1A 802DRN shield off.jpg
WikiDevi.wi-cat.ru Actiontec 802DRN
Platform
BrandModelRev Actiontec 802DRN
Interface Mini PCIe
Connector Mini PCIe (dual)
FCCID LNQ802DRN
Chip1 Marvell 88W8764
Chip2 Marvell 88W8764

OUI: none specified

Radio1
MIMO status 3x3:3
Wireless Standards IEEE 802.11b/g/n
802.11n up to 450 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Radio2
MIMO status 3x3:3
Wireless Standards IEEE 802.11a/n
802.11n up to 450 Mbps
802.11a up to 54 Mbps
Operating Frequency 5 GHz
Other

Flags:
dual radio

Probable Linux driver
mwl8kmwl8k (in backports)
(see also passys)

Retail
End of Life date 13 June 2012
Country of manuf China
 FCC ID
Google Fiber Network Box (GFRG110)LNQ802DRN

For a list of all currently documented Marvell chipsets with specifications, see Marvell.

For a list of all currently documented Actiontec devices with specifications, see Actiontec.

450 Mbps - 3SS 5GHz 802.11n (40MHz chan.),
450 Mbps - 3SS 2.4GHz 802.11n (40MHz chan.) = AN900 class

Overview

This is a dual-radio card. This device is Marvell based - presumably using 88W8764.

The transmitter modular approval letter states the device was tested in a Marvell Access Point (Model: AP-8764DR1), which seems to support this..

"Actiontec" and "TwinTower-1A" is silkscreened on the wireless module board in the FCC photos.
