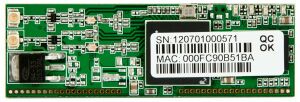

Allnet ALL5002
From TechInfoDepot
Jump to navigationJump to searchbgn (N300) | |
---|---|
Single Board Computer | |
![]() | |
Homepage | |
3rd Party Firmware | |
dd-wrt |
Status Unknown |
OpenWrt | |
Tomato any flavor |
Incompatible |
Gargoyle |
Status Unknown |
Platform | |
Brand • Model • Rev |
Allnet ALL5002 |
FCC ID |
none specified |
Type |
single-board computer |
CPU1 | |
CPU1 Speed |
400 MHz |
Flash1 Chip |
Brand? Model? |
Flash1 Size |
32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br /> |
RAM1 Size |
64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> |
RAM1 Chip |
Brand? Model? |
ETH chip1 | |
Ethernet Port Count |
1-100MbE-LAN |
Wired Standard |
IEEE 802.3i/3u |
802dot11 OUI: none specified | |
Stock bootloader |
U-Boot |
Expansion IF types |
USB 2.0 |
USB ports |
1 |
USB Hub Compatible |
Untested |
Serial Port (UART) |
yes |
JTAG Port |
yes |
Other | |
| |
3rd Party Firmware Support | |
Radio 1 | |
Chip1 | |
Wireless interface OUI |
none specified |
Antenna Connector Type |
none specified |
MIMO status |
2x2:2 |
Wireless Standard |
IEEE 802.11b/g/n |
802.11n |
up to 300 Mbps |
802.11g |
up to 54 Mbps |
802.11b |
up to 11 Mbps |
WiFi Operating Frequency |
2.4 GHz |
For a list of all currently documented Ralink chipsets with specifications, see Ralink.
For a list of all currently documented Allnet device with specifications, see Allnet.
- • 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
On the OpenWrt ToH (techdata entry)
OpenWrt Target: ramips
OpenWrt Subtarget: rt305x
OpenWrt Package architecture: mipsel_24kc
Support started version: 12.09
Current supported version: 23.05.4
OpenWrt Target: ramips
OpenWrt Subtarget: rt305x
OpenWrt Package architecture: mipsel_24kc
Support started version: 12.09
Current supported version: 23.05.4
Please insert instructions here
