AsiaRF AW7916-NPD

From TechInfoDepot
Jump to navigationJump to search
abgn+ac+ax (AX3000)
Wi-Fi 6E 802.11ax 2T2R 3000Mbps DBDC Mini PCIe Module
Homepage Product page
Platform
BrandModelRev AsiaRF AW7916-NPD v1
Interface Mini PCIe 2.1
Connector Mini PCIe
Form factor Mini Card (full size)
ID:14c3:7916 (2 addl. devices)
Windows: PCI\VEN_14C3&DEV_7916
FCCID TKZAW7916-NPD
Chip1 MediaTek MT7916AN
Chip2 MediaTek MT7976DN

OUI: 00:0A:52 (-, 10 W)

Radio1
Antenna Connection U.FL
MIMO status 2x2:2
Wireless Standards IEEE 802.11b/g/n/ax
802.11ax up to 574 Mbps
802.11n up to 300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Radio2
Antenna Connection U.FL
MIMO status 3x3:2
Wireless Standards IEEE 802.11a/n/ac/ax
802.11ax up to 2402 Mbps
802.11ac up to 1300 Mbps
802.11n up to 450 Mbps
802.11a up to 54 Mbps
Operating Frequency 5 GHz
Other
Manuf/OEM/ODM AsiaRF
Flags:
Wi-Fi 6E, WPA3, MU-MIMO, HE160, DFS, MRC

Windows driver
possibly see MediaTek's website
MTK keeps changing their site around,
there's probably nothing there right now

Retail
FCC approval date 10 November 2023
(Est.) release date 01 March 2023
(Est.) initial retail price (in USD) $39.9
Country of manuf Taiwan

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented AsiaRF devices with specifications, see AsiaRF.

574 Mbps - 2SS 2.4GHz 802.11ax (40MHz chan., 1024QAM),
2402 Mbps - 2SS 5GHz 802.11ax (160MHz chan., 1024QAM) = AX3000 class

Overview

Features

  • 32-bit RISC MCU for Wi-Fi protocols and Wi-Fi offload (Filogic 630)
Integrate 4Kbit efuse to store device specific information
and calibration data, Embedded SRAM/ROM
  • Dual-Band Dual Concurrent (DBDC) with PHY rate up to 3000Mbps
802.11abgn/ac/ax, 2.4GHz G-band 2T2R + 5GHz A-band 3T3R 2SS
Support 20/40MHz in G-band, 20/40/80/160MHz bandwidth in A-band
Support MU-MIMO TX/RX, Support MU-OFDMA TX/RX
Support STBC, LDPC, TX Beamformer and RX Beamformer
Support Greenfield, Mixed mode, Legacy modes
  • Security support for WFA WPA/WPA2/WPA3 personal, WPS2.0
QoS support of WFA WMM, WMM PS
  • PCIe device fully compliant to PCIe v2.1 specification
UART interface with hardware flow control
Programmable and multiplexed GPIO pins

Pictures

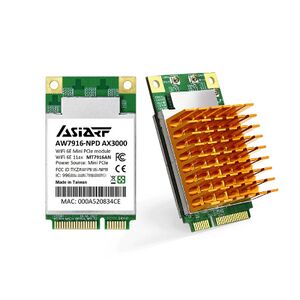

Retail Images
