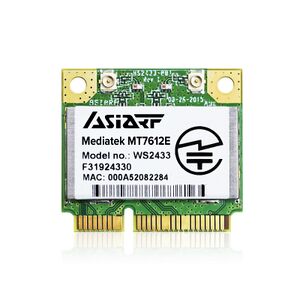

AsiaRF WS2433

multiple revisions of this device, use caution

abgn+ac (AC1200)
802.11ac Dual Band WiFi Mini PCIe Module
Homepage	Product page
WikiDevi.wi-cat.ru	AsiaRF WS2433
Platform
Brand • Model • Rev	AsiaRF WS2433
Interface	Mini PCIe
Connector	Mini PCIe
Form factor	(half)
FCCID	none specified
Chip1	MediaTek MT7612EN
OUI: none specified
Antenna Connection	U.FL
MIMO status	2x2:2
Wireless Standards	IEEE 802.11a/b/g/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
Operating Frequency	2.4 or 5 GHz
Probable Linux driver mt76 (WIP) (see also passys)
Windows driver possibly see MediaTek's website MTK keeps changing their site around, there's probably nothing there right now
Chip1 brand Chip2 brand AsiaRF WS2433 MediaTek AsiaRF WS2433-H MediaTek

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented AsiaRF device with specifications, see AsiaRF.

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

Features

• Compatible with wireless 802.11abgn/ac standard

with data rates up to 867Mbps

• Supports 802.11i security standard and implements

hardware acceleration for TKIP, CCMP and WAPI.

• The device also supports 802.11e QoS for video,

voice, and multimedia applications.

• Built with proprietary power MMIC's.
• 2.4GHz for reliable and demanding all IoT, POS,

and Industrial PC applications

• Supports WMM, WMM-PS (802.11e QoS standard)
• Supports 64/128-bit WEP, WPA (TKIP with 802.1x),

WPA2 (AES with 802.1x) for high security level

• Operating system supports for: Windows 2000/XP/Vista,

Windows 7/8/10, MAC 10.4.x and above & Linux, Android

Specifications

*Standards: USB 2.0 standard
Wireless: 802.11abgn/ac (2T2R)

*Data Rate:
:802.11ac 1733Mbps TX/RX
:802.11a/n 600Mbps TX/RX
:802.11a/g 108Mbps TX/RX
:802.11b 22Mbps TX/RX

*Output Power:
11a: 16dBm ± 1.5dbm 54Mbps
11b: 20dbm ± 1.5dbm 11Mbps
11g: 18dbm ± 1.5dbm 54Mbps
11g/n: 18dBm ± 1.5dbm (MCS7,HT20), 17dBm (MCS7,HT40)
11a/n: 15dBm ± 1.5dbm (MCS7,HT20), 13dBm (MCS7,HT40)
11ac HT20: 12dBm ± 1.5dBm MCS8
11ac HT40: 12dBm ± 1.5dBm MCS9
11ac HT80: 12dBm ± 1.5dBm MCS9

*Receiver Sensitivity:
11a: -75Bm 54Mbps
11b: -89dBm 11Mbps
11g: -76dBm 54Mbps
11g/n: -74dBm (HT20,MCS7), -66dBm (HT40,MCS7)
11a/n: -73dBm (HT20,MCS7), -71dBm (HT40,MCS7)
11ac: -57dBm ± 2dBm (HT20,MCS8)
11ac: -54dBm ± 2dBm (HT40,MCS9)
11ac: -51dBm ± 2dBm (HT80,MCS9)

*Antenna: Internal Chip Antenna /
:External Antenna connector (IPEX)

*Frequency Range: 5.15~5.875GHz
US, Canada: 2.412~2.462GHz (CH1~CH11)
EU, Japan: 2.412~2.472GHz (CH1~CH13)

*Software:
Security: 64/128-bit WEP Encryption, WPA, WPA2
Driver: Windows XP/2000/Vista, Windows7/8/10, Linux, Mac
*Operating Voltage: DC 5V ± 5%
