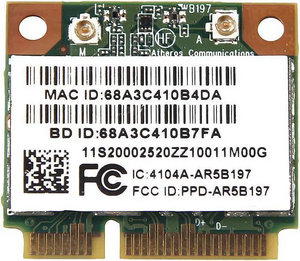

Atheros AR5B197

From TechInfoDepot
Jump to navigationJump to search
bgn (N300)
WikiDevi.wi-cat.ru Atheros AR5B197
Platform
BrandModelRev Atheros AR5B197
Interface Mini PCIe
Connector Mini PCIe
Form factor (half)
ID:168c:002e (7 addl. devices)
Windows: PCI\VEN_168C&DEV_002E
FCCID PPD-AR5B197
ICID 4104A-AR5B197
Chip1 Atheros AR9287

OUI: none specified

Antenna Connection U.FL
MIMO status 2x2:2
Wireless Standards IEEE 802.11b/g/n
802.11n up to 300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Other
Flags:
Bluetooth 3.0

Windows driver
see ath-drivers.eu
(Win 7/8/10)

Retail
FCC approval date 25 June 2010

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.

For a list of all currently documented Atheros devices with specifications, see Atheros.

300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class

Overview

AR9002WB-2NG.pdf Mini PCIe (half-size) card reference design, aka WB197

Combo card - Wi-Fi (AR9287) 2x2 bgn + Bluetooth (AR3011)

This device is manufactured by Lite-On as the WCBN607AH.

68:A3:C4 OUI

This device is manufactured by Askey.

"3017-009900" is silkscreened on the back of the card.
00:26:B6 OUI
