Atheros AR5B95
From TechInfoDepot
Jump to navigationJump to search
| bgn (N150) | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

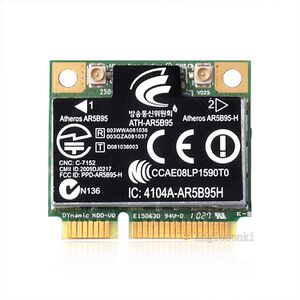

| Atheros AR9285 Mini PCIe Half Card (HB95) reference design | |||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||
| WikiDevi.wi-cat.ru | Atheros AR5B95 | ||||||||||||||||||||||||||||||||||||||||
| Platform | |||||||||||||||||||||||||||||||||||||||||
| Brand • Model • Rev | Atheros AR5B95(HB95) | ||||||||||||||||||||||||||||||||||||||||
| Interface | Mini PCIe | ||||||||||||||||||||||||||||||||||||||||
| Connector | Mini PCIe | ||||||||||||||||||||||||||||||||||||||||
| Form factor | (half) | ||||||||||||||||||||||||||||||||||||||||
|
ID:168c:002b (21 addl. devices) | |||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||
| FCCID | PPD-AR5B95, PPD-AR5B95-H, PPD-AR5B95-F | ||||||||||||||||||||||||||||||||||||||||
| ICID | 4104A-AR5B95, 4104A-AR5B95H, 4104A-AR5B95F | ||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||
| Chip1 | Atheros AR9285 | ||||||||||||||||||||||||||||||||||||||||
|
OUI: none specified | |||||||||||||||||||||||||||||||||||||||||
| Antenna Connection | U.FL | ||||||||||||||||||||||||||||||||||||||||
| MIMO status | 1x1:1 | ||||||||||||||||||||||||||||||||||||||||
| Wireless Standards | IEEE 802.11b/g/n | ||||||||||||||||||||||||||||||||||||||||
| 802.11n | up to 150 Mbps | ||||||||||||||||||||||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||||||||||||||||||||||
| Operating Frequency | 2.4 GHz | ||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||
|
Probable Linux driver | |||||||||||||||||||||||||||||||||||||||||
|
Windows driver | |||||||||||||||||||||||||||||||||||||||||
| Retail | |||||||||||||||||||||||||||||||||||||||||
| Availability | reference design | ||||||||||||||||||||||||||||||||||||||||
| FCC approval date | 12 December 2008 | ||||||||||||||||||||||||||||||||||||||||
| Country of manuf | China | ||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Atheros devices with specifications, see Atheros.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
1x1 SISO
Submodels:
- AR5B95-H (Filed: 12/22/2008)
- AR5B95-F (Filed: 05/05/2009)
