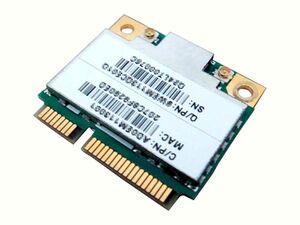

AzureWave AW-AB116H
From TechInfoDepot
Jump to navigationJump to search
| abgn (AN600) | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MiniPCIe 802.11a/b/g/n 2.4/5GHz + USB BT 4.0 Card | |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
| Homepage | Product page | ||||||||||||||||||||||||
| WikiDevi.wi-cat.ru | AzureWave AW-AB116H | ||||||||||||||||||||||||
| Platform | |||||||||||||||||||||||||
| Brand • Model • Rev | AzureWave AW-AB116H | ||||||||||||||||||||||||
| Interface | Mini PCIe | ||||||||||||||||||||||||
| Connector | Mini PCIe | ||||||||||||||||||||||||
| Form factor | Half Mini Card (half) | ||||||||||||||||||||||||
|
ID:168c:0034 (17 addl. devices) SS: 1a3b:2116 | |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
| FCCID | PPD-AR5B22 | ||||||||||||||||||||||||
| ICID | 4104A-AR5B22 | ||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
| Chip1 | Atheros AR9462 | ||||||||||||||||||||||||
| Antenna Connection | U.FL | ||||||||||||||||||||||||
| MIMO status | 2x2:2 | ||||||||||||||||||||||||
| Wireless Standards | IEEE 802.11a/b/g/n | ||||||||||||||||||||||||
| 802.11n | up to 300/300 Mbps | ||||||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||||||||||||||
| Operating Frequency | 2.4 or 5 GHz | ||||||||||||||||||||||||
| Other | |||||||||||||||||||||||||
Flags: | |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
Probable Linux driver | |||||||||||||||||||||||||
|
Windows driver | |||||||||||||||||||||||||
| Retail | |||||||||||||||||||||||||
| FCC approval date | 03 February 2012 | ||||||||||||||||||||||||
| ASIN |
B00U8VT8FE | ||||||||||||||||||||||||
| |||||||||||||||||||||||||
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
Overview
See also AzureWave AW-NB110H (WB222)..
