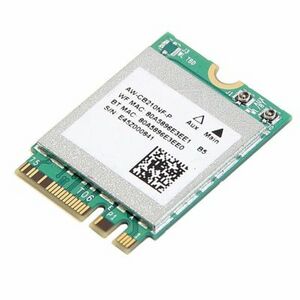

AzureWave AW-CB210NF
From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC1200) | |||||||
---|---|---|---|---|---|---|---|
Wireless 802.11a/b/g/n/ac WLAN+BT NGFF Card | |||||||
Homepage | Product page | ||||||
WikiDevi.wi-cat.ru | AzureWave AW-CB210NF | ||||||
Platform | |||||||
Brand • Model • Rev | AzureWave AW-CB210NF | ||||||
Interface | M.2 | ||||||
Connector | M.2 | ||||||
Form factor | 2230 | ||||||
ID:14e4:43ec (2 addl. devices) Windows: PCI\VEN_14E4&DEV_43EC | |||||||
FCCID | TLZ-CB210NF, QDS-BRCM1085 | ||||||
Chip1 | Broadcom BCM4356 | ||||||
OUI: none specified | |||||||
Antenna Connection | U.FL | ||||||
MIMO status | 2x2:2 | ||||||
Wireless Standards | IEEE 802.11a/b/g/n/ac | ||||||
802.11ac | up to 867 Mbps | ||||||
802.11n | up to 300/300 Mbps | ||||||
802.11g | up to 54 Mbps | ||||||
802.11b | up to 11 Mbps | ||||||
802.11a | up to 54 Mbps | ||||||
Operating Frequency | 2.4 or 5 GHz | ||||||
Other | |||||||
Flags: Bluetooth 4.1 | |||||||
Probable Linux driver | |||||||
Retail | |||||||
UPC |
625485432094 (UPC DB, On eBay) | ||||||
EAN |
0625485432094 (UPC DB, On eBay) | ||||||
Country of manuf | China | ||||||
|
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
Overview
- Frequency: 2.4/5 GHz
- Antenna: 2x2 MIMO
- Wi-Fi: 802.11 abgn/ac
- Bluetooth: BT 4.1
- Interface: PCI-E / USB
- Form factor: M.2 2230
- Dimension: 22 x 30 x 2.2 mm
- Broadcom BCM4356 (2T2R 802.11ac, BT 4.1)
See also: AzureWave Wireless Adapters
Links of Interest
- AzureWave AW-CB210NF-P (ASUS WIFI GO! Card)
- Model: BCM94356Z (Asus Z170I PRO GAMING NB)
- AzureWave AW-CE123H (ASUS WIFI GO! Card)
- Model: BCM94352HMB (Asus Z97,Z87,X99 Pro/Delux)
