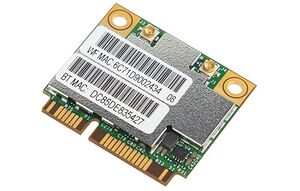

AzureWave AW-CE123H
| abgn+ac (AC1200) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wireless 802.11a/b/g/n/ac WLAN+BT PCI-E Mini Card | |||||||||||
|
| |||||||||||
| WikiDevi.wi-cat.ru | AzureWave AW-CE123H | ||||||||||
| Platform | |||||||||||
| Brand • Model • Rev | AzureWave AW-CE123H | ||||||||||
| Interface | Mini PCIe | ||||||||||
| Connector | Mini PCIe | ||||||||||
| Form factor | (half) | ||||||||||
|
ID:14e4:43b1 (11 addl. devices) SS: 1a3b:2123 | |||||||||||
|
| |||||||||||
| FCCID | QDS-BRCM1068 | ||||||||||
| ICID | 4324A-BRCM1068 | ||||||||||
|
| |||||||||||
| Chip1 | Broadcom BCM4352 | ||||||||||
| Antenna Connection | U.FL | ||||||||||
| MIMO status | 2x2:2 | ||||||||||
| Wireless Standards | IEEE 802.11a/b/g/n/ac | ||||||||||
| 802.11ac | up to 867 Mbps | ||||||||||
| 802.11n | up to 300/300 Mbps | ||||||||||
| 802.11g | up to 54 Mbps | ||||||||||
| 802.11b | up to 11 Mbps | ||||||||||
| 802.11a | up to 54 Mbps | ||||||||||
| Operating Frequency | 2.4 or 5 GHz | ||||||||||
| Other | |||||||||||
| Manuf/OEM/ODM | AzureWave | ||||||||||
Flags: | |||||||||||
|
| |||||||||||
|
Probable Linux driver | |||||||||||
|
Windows driver | |||||||||||
| Retail | |||||||||||
| FCC approval date | 16 October 2012 | ||||||||||
| ASIN |
B00HRFS1GQ multiple uses | ||||||||||
| Country of manuf | China | ||||||||||
| |||||||||||
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
Overview
The PCI ID for this device is presumed to be
- 14e4:43b1 (1a3b:2123)
This module seems to be used with (at least) the following devices...
- ASUS G75VX series gaming laptops (Republic of Gamers / RoG)
- ASUS G750 series gaming laptops (G750JX-T4070H) (RoG)
- ASUS Rampage V Extreme motherboard (RoG)
- GIGA-BYTE GA-Z87X-UD5 TH motherboard
- HP ENVY Phoenix 810-160 Desktop PC
- ASROCK Z87E-ITX motherboard
- ASROCK M8 Barebones PC
