AzureWave AW-CM276NF

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC1200)
802.11ac 2x2 MU-MIMO WLAN/BT Combo NGFF Module

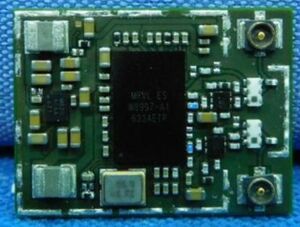

UAY-W8997-M1216 FCC Internal Board.jpg
WikiDevi.wi-cat.ru AzureWave AW-CM276NF
Platform
BrandModelRev AzureWave AW-CM276NF-E02H
Interface M.2 2.0
Connector SD (solder down)
Form factor 1216
FCCID UAY-W8997-M1216
ICID 6549A-W8997M1216
Chip1 Marvell 88W8997

OUI: none specified

Antenna Connection MHF4
MIMO status 2x2:2
Wireless Standards IEEE 802.11a/b/g/n/ac
802.11ac up to 867 Mbps
802.11n up to 300/300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other
Manuf/OEM/ODM AzureWave

Flags:
Wave2, MU-MIMO, Bluetooth 4.2, DFS (slave)

Probable Linux driver
mwifiexmwifiex (in backports)
(see also passys)

Retail
FCC approval date 25 January 2017
 FCC ID
Marvell W8997-M1216UAY-W8997-M1216

For a list of all currently documented Marvell chipsets with specifications, see Marvell.

For a list of all currently documented AzureWave devices with specifications, see AzureWave.

867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),
300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

Pictures

FCCID UAY-W8997-M1216
