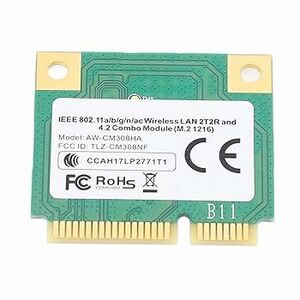

AzureWave AW-CM308NF
From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC1200) | |
---|---|
802.11ac WLAN/BT 4.2 Combo NGFF (M.2) Module | |
![]() | |
Homepage | Product page |
WikiDevi.wi-cat.ru | AzureWave AW-CM308NF |
Platform | |
Brand • Model • Rev | AzureWave AW-CM308NF |
Interface | USB 2.0 |
Connector | M.2 1.1 |
Form factor | 1216 |
ID:10ec:b822 (3 addl. devices) | |
| |
FCCID | TLZ-CM308NF |
ICID | 6100A-CM308NF |
Chip1 | Realtek RTL8822BE |
OUI: none specified | |
Antenna Connection | MHF4 |
MIMO status | 2x2:2 |
Wireless Standards | IEEE 802.11a/b/g/n/ac |
802.11ac | up to 867 Mbps |
802.11n | up to 300/300 Mbps |
802.11g | up to 54 Mbps |
802.11b | up to 11 Mbps |
802.11a | up to 54 Mbps |
Operating Frequency | 2.4 or 5 GHz |
Other | |
Manuf/OEM/ODM | AzureWave |
Flags: | |
| |
Probable Linux driver | |
Windows driver | |
Retail | |
FCC approval date | 10 August 2017 |
Country of manuf | China |
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
Overview
- 802.11abgn/ac 2T2R (AC1200)
- Bluetooth 4.2 (NGFF M.2 1216)
This device was under short-term confidentiality, but that expired 02/03/2018 ⚠.
See also: AzureWave Wireless Adapters
- Realtek#ac RTL8822BE - PCIe 1.1 (WLAN)/USB 2.0 (BT)
- 802.11abgn+ac 2T2R (2x2:2), Wave2, MU-MIMO, BT 4.2
AzureWave claims Bluetooth 4.2 support in the user manual but
- Realtek only claims Bluetooth 4.1 support for the RTL8822BE
The user manual also says:
- Support Bluetooth 4.1 system
- Support Bluetooth 4.2 LE Secure Connection
- by upper layer software upgrade
