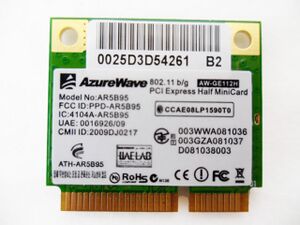

AzureWave AW-GE112H
From TechInfoDepot
Jump to navigationJump to search
bg (G54) | |||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PCI Express Half MiniCard | |||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
WikiDevi.wi-cat.ru | AzureWave AW-GE112H | ||||||||||||||||||||||||||||||||
Platform | |||||||||||||||||||||||||||||||||
Brand • Model • Rev | AzureWave AW-GE112H | ||||||||||||||||||||||||||||||||
Interface | Mini PCIe | ||||||||||||||||||||||||||||||||
Connector | Mini PCIe | ||||||||||||||||||||||||||||||||
Form factor | (half) | ||||||||||||||||||||||||||||||||
ID:168c:002c SS: 1a3b:1112 | |||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
FCCID | PPD-AR5B95 | ||||||||||||||||||||||||||||||||
ICID | 4104A-AR5B95 | ||||||||||||||||||||||||||||||||
Chip1 | Atheros AR2427 | ||||||||||||||||||||||||||||||||
Antenna Connection | U.FL | ||||||||||||||||||||||||||||||||
Wireless Standards | IEEE 802.11b/g | ||||||||||||||||||||||||||||||||
802.11g | up to 54 Mbps | ||||||||||||||||||||||||||||||||
802.11b | up to 11 Mbps | ||||||||||||||||||||||||||||||||
Operating Frequency | 2.5 GHz | ||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
Probable Linux driver | |||||||||||||||||||||||||||||||||
Windows driver | |||||||||||||||||||||||||||||||||
Retail | |||||||||||||||||||||||||||||||||
FCC approval date | 12 December 2008 | ||||||||||||||||||||||||||||||||
|
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented AzureWave devices with specifications, see AzureWave.
- • 54 Mbps - 2.4GHz 802.11g = G54 class
Overview
The 168c:002c PCI ID is the AR2427 ID. It would appear that the AR2427 is a software disabled or specially HT bonded out version of the AR9285.
This device is the wireless module for the..
- ASUS EEE PC 1001P - FCC ID: MSQE05NE785, IC ID: 3568A-E05NE785, ASUS P/N: 04G033054081
Output of sudo lspci -vvnnq -d 168c:002c here, or here.
