AzureWave AW-GE780

From TechInfoDepot
Jump to navigationJump to search
bg (G54)
PCI Express MiniCard

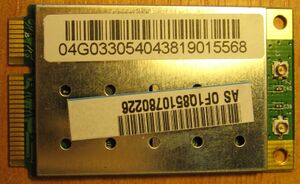

AR5BXB63 1.JPG
Homepage Product page
WikiDevi.wi-cat.ru AzureWave AW-GE780
Platform
BrandModelRev AzureWave AW-GE780
Interface Mini PCIe
Connector Mini PCIe

ID:168c:001c (14 addl. devices) SS: 1a3b:1026
Windows: PCI\VEN_168C&DEV_001C&SUBSYS_10261A3B

FCCID PPD-AR5BXB63, JCK-M912
Chipset Atheros AR5007EG
Chip1 Atheros AR2425

OUI: 00:15:AF (-, 9 W), 00:22:43 (-, 8 W)

Antenna Connection U.FL
Wireless Standards IEEE 802.11b/g
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz

Windows driver
see ath-drivers.eu

Retail
FCC approval date 07 August 2006
Country of manuf China
 FCC ID
Askey WLL3141-D4PPD-AR5BXB63
CJ6UPA3613WL
Atheros AR5BXB63PPD-AR5BXB63
PPD-AR5BXB63-H
PPD-AR5BXB63-L
PPD-AR5BXB63-D
Foxconn T60H976 (HP)PPD-AR5BXB63
PPD-AR5BXB63-H
Foxconn T60H976.00PPD-AR5BXB63
Foxconn T60H976.01/.02 (Toshiba)PPD-AR5BXB63
CJ6UPA3613WL
Foxconn T60H976.05PPD-AR5BXB63
Foxconn T60H976.11PPD-AR5BXB63
Gigabyte GN-WS50G-RHPPD-AR5BXB63
JCK-GN-WS50G-RH

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.

For a list of all currently documented AzureWave devices with specifications, see AzureWave.

54 Mbps - 2.4GHz 802.11g = G54 class

Overview

Model no. AR5BXB63 (AR5007EG Mini PCIe reference design)

ASUS part no. 04G033054040 (V.C) and 04G033054041 (V.D). Referenced in the EEE 701 service manual here. Also used in the EEE PC 900 (FCC ID MSQEPC9GE780).
