AzureWave AW-NB086

From TechInfoDepot
Jump to navigationJump to search
bgn (N150)
802.11b/g/n WIFI/BT Combo Slim Module

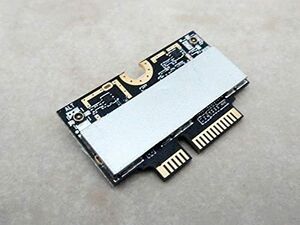

AzureWave AW-NB086 module.jpg
WikiDevi.wi-cat.ru AzureWave AW-NB086
Platform
BrandModelRev AzureWave AW-NB086
Interface PCIe
Connector (non-standard connector)
ID:168c:0032 (8 addl. devices) SS: 1a3b:2086
Windows: PCI\VEN_168C&DEV_0032&SUBSYS_20861A3B
FCCID TLZ-NB086
ICID 6100A-AWNB086
Chip1 Atheros AR9485

OUI: 00:08:CA (-, 4 W), 74:2F:68 (-, 8 W), E0:B9:A5 (-, 5 W)

Antenna Connection MHF4
MIMO status 1x1:1
Wireless Standards IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Other
Manuf/OEM/ODM AzureWave
Flags:
Bluetooth

Windows driver
see ath-drivers.eu
(Win 7/8/10)

Retail
FCC approval date 23 August 2011
EAN 4057657263629
(UPC DB, On eBay)
ASIN B00U8ZRO7Y Flag of the United States.svg
Country of manuf China

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.

For a list of all currently documented AzureWave devices with specifications, see AzureWave.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

This is a very small module (290x200mm).

Atheros AR9485 (WiFi) + AR3012 (BT)

Identifies in Windows as a Atheros AR9485WB-EG Wireless Network Adapter.

FCC ID: ANATEL/02823-11-04533

according to this patch:

http://www.spinics.net/lists/linux-wireless/msg108539.html

this card based on CUS198 reference design.
