AzureWave AW-NB111H

From TechInfoDepot
Jump to navigationJump to search
abgn (AN600)
802.11a/b/g/n WLAN + Bluetooth Mini PCI-E Card

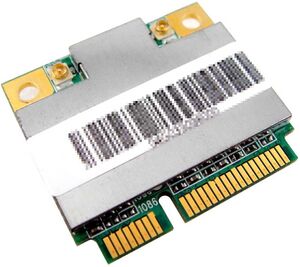

AzureWave AW-NB111H.jpg
WikiDevi.wi-cat.ru AzureWave AW-NB111H
Platform
BrandModelRev AzureWave AW-NB111H
Interface Mini PCIe
Connector Mini PCIe
Form factor (half)

ID:14e4:4359 (7 addl. devices) SS: 13d3:3392
Windows: PCI\VEN_14E4&DEV_4359&SUBSYS_339213D3

FCCID QDS-BRCM1058, MSQ-BRCM1058
ICID 4324A-BRCM1058, 3568A-BRCM1058
Chip1 Broadcom BCM43228

OUI: DC:85:DE (-, 4 W)

Antenna Connection U.FL
MIMO status 2x2:2
Wireless Standards IEEE 802.11a/b/g/n
802.11n up to 300/300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other

Flags:
Bluetooth, DFS

Additional chips
Bluetooth 4.0 chip;Broadcom;BCM20702;;1;

Retail
FCC approval date 30 June 2011
ASIN B00UOF56Y6 Flag of the United States.svg
 FCC ID
Broadcom BCM943228HMBQDS-BRCM1058
Foxconn T77H365.00QDS-BRCM1058
Foxconn T77H365.01 (Lenovo)QDS-BRCM1058
Lite-On WCBN603BHQDS-BRCM1058
Lite-On WCBN603BH (HP)QDS-BRCM1058
Lite-On WCBN603BH-L6 (Lenovo)QDS-BRCM1058

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.

For a list of all currently documented AzureWave devices with specifications, see AzureWave.

300 Mbps - 2SS 5GHz 802.11n (40MHz chan.),
300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AN600 class

Overview

AzureWave Wireless Adapters

Broadcom BCM43228 + BCM20702 (BT 4.0)
Subsystem UD: 13d3:3392 - ASUS U38N
"Broadcom Bluetooth" "bcbtums-win8x64-brcm.inf"
  • The FCC photos show the device with a
DC:85:DE Wi-Fi OUI and E0:B9:A5 BT OUI
