AzureWave AW-XB530NF

From TechInfoDepot
Jump to navigationJump to search
abgn+ac+ax (AXE5400)

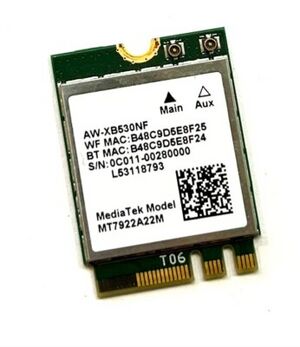

AXE5400 Wi-Fi 6E 2T2R WLAN/BT Combo Card
WikiDevi.wi-cat.ru
Platform
BrandModelRev
AzureWave AW-XB530NF
Model Part Number
0C011-00280000
Interface
M.2 2.1
Connector
M.2 (Key A/E)
Form factor
2230
ID:14c3:7922 (2 addl. devices) SS: 1a3b:5300
Windows: PCI\VEN_14C3&DEV_7922&SUBSYS_53001A3B
FCCID
Chip1
MediaTek MT7922A
Radio1
Antenna Connection
MHF4
MIMO status
2x2:2
Wireless Standards
IEEE 802.11b/g/n/ax
802.11ax
up to 574 Mbps
802.11n
up to 300 Mbps
802.11g
up to 54 Mbps
802.11b
up to 11 Mbps
Operating Frequency
2.4 GHz
Radio2
Antenna Connection
MHF4
MIMO status
2x2:2
Wireless Standards
IEEE 802.11a/n/ac/ax
AX-QAM
up to 2402 Mbps
802.11ax
up to 1201 Mbps
802.11ac
up to 867 Mbps
802.11n
up to 300 Mbps
802.11a
up to 54 Mbps
Operating Frequency
5 GHz
Radio3
Antenna Connection
MHF4
MIMO status
2x2:2
Wireless Standards
IEEE 802.11a/n/ac/ax
AX-QAM
up to 2402 Mbps
802.11ax
up to 1201 Mbps
802.11ac
up to 867 Mbps
802.11n
up to 300 Mbps
802.11a
up to 54 Mbps
Operating Frequency
6 GHz
Other
Flags:
Wi-Fi 6E, Bluetooth 5.2 LE, WPA3, Wi-Fi Direct, WMM, Wi-Fi Agile Multiband

Windows driver
Win 10 (64-bit)

Retail
(Est.) release date 08 July 2021
Country of manuf China
 FCC ID
MediaTek MT7922A22M Reference DesignRAS-MT7922A22M

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented AzureWave device with specifications, see AzureWave.

574 Mbps - 2SS 2.4GHz 802.11ax (40MHz chan., 256QAM),
2402 Mbps - 2SS 5GHz 802.11ax (160MHz chan.),
2402 Mbps - 2SS 6GHz 802.11ax (160MHz chan.) = AXE5400 class

Overview

See also: AzureWave and MediaTek

Specifications

  • MT7922 - MediaTek BT chipset BT BB/LM/LL/RF/RF-PHY/HCI
MediaTek MT7922A / MT7922U • Filogic 330P Wi-Fi 6E
PCI\VEN_14C3&DEV_7922&SUBSYS_792214C3 [14c3:7922/14c3:7922] • MediaTek MT7922A
PCI\VEN_14C3&DEV_7922&SUBSYS_380411AD [14c3:7922/11ad:3804] • Lite-On
PCI\VEN_14C3&DEV_7922&SUBSYS_53001A3B [14c3:7922/1a3b:5300] • AzureWave
PCI\VEN_14C3&DEV_7922&SUBSYS_53011A3B [14c3:7922/1a3b:5301] • AzureWave
PCI\VEN_14C3&DEV_0616&SUBSYS_061614C3 [14c3:0616/14c3:0616] • (AMD RZ616) MT7922A
PCI\VEN_14C3&DEV_0616&SUBSYS_E0C617AA [14c3:0616/17aa:e0c6] • Lenovo
PCI\VEN_14C3&DEV_0616&SUBSYS_E0C717AA [14c3:0616/17aa:e0c7] • Lenovo
PCI\VEN_14C3&DEV_0616&SUBSYS_E0CB105B [14c3:0616/105b:e0cb] • Foxconn
PCI\VEN_14C3&DEV_0616&SUBSYS_E0CD105B [14c3:0616/105b:e0cd] • Foxconn
• USB\VEN_0E8D&DEV_7922 • [0e8d:7922] • USB 3.0, BT 5.2 • MediaTek MT7922U Wi-Fi 6E
  • MediaTek MT7922A • AX2400 2x2 160MHz (M.2 2230/1216) BT 5.2
AMD RZ616 - Wi-Fi 6E Module • WFA111375 (2021-05-03)
  • MediaTek MT7921K • AX1200 2x2 80MHz (M.2 2230) BT 5.2
AMD RZ608 - Wi-Fi 6E Module • WFA103759 (2021-05-18)
