AzureWave GPS-M21
From TechInfoDepot
Jump to navigationJump to search
GPS Mini card | |||||||||||||||||
| |||||||||||||||||
WikiDevi | AzureWave GPS-M21 | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brand • Model • Rev | AzureWave GPS-M21 | ||||||||||||||||
Interface | USB | ||||||||||||||||
Connector | Mini PCIe | ||||||||||||||||
ID:413c:9500 Windows: USB\VID_413C&PID_9500 | |||||||||||||||||
Chip1 | Broadcom BCM4750 | ||||||||||||||||
Other | |||||||||||||||||
Categorized as | USB GPS receiver | ||||||||||||||||
Probable Linux driver | |||||||||||||||||
|
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
Overview

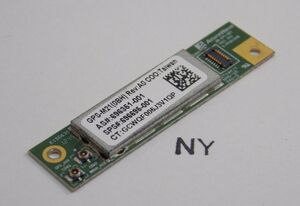

Full-size module, but the top half is just a PCB spacer, the electronics are in the half-size section
Used in the Dell Mini 10 (1010), Dell P/N DW700 GPS
Links of Interest
Thread about the module @ UbuntuForums
- The USB ID is noted as 413c:9500, one poster notes the Windows GPS utility notes the chi as BCM4750 A1
