Banana Pi BPI-6204

From TechInfoDepot
Jump to navigationJump to search
bgn (N150)
Embedded Single Board Industrial Computer
Support
WikiDevi.wi-cat.ru
3rd Party Firmware
dd-wrt
Status Unknown
OpenWrt
Status Unknown
Tomato any flavor
Incompatible
Platform
Brand • Model • Rev
Banana Pi BPI-6204
FCC ID
none specified
Board ID
CS6204-A0
Type
industrial box computer, single-board computer
CPU1
Allwinner A40i
CPU1 Type
ARM Cortex-A7
CPU1 Speed
1.2 GHz ( 4 cores )
Flash1 Chip
Samsung KLM8G1GETF-B041
Flash1 Size
8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC 5.1)
RAM1 Size
2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR3)
RAM1 Chip
SK hynix H5TQ4G83EFR-RDC
ETH chip1
Allwinner A40i
ETH chip2
Realtek RTL8211E
ETH chip3
IC+ IP101GRI
Ethernet Port Count
1-1GbE-WAN
1-100MbE-LAN
Wired Standard
IEEE 802.3i/3u/3ab

802dot11 OUI: none specified

Stock bootloader
U-Boot 2019.07
Stock FW OS
Linux 5.4.0 Ubuntu 20.04
Expansion IF types
M.2 (SSD), M.2 (USB 2.0), USB 2.0, Micro SD Card slot, Micro SIM Card slot
SIM Card slot
1
Mini PCIe slots
1
USB ports
3
SD/MMC Slots
1
SATA Ports
1
USB Hub Compatible
Untested
Connector type
MSTB 2,5/ 3-ST-5,08
Serial Port (UART)
yes, console port, RS232
Flags:
Bluetooth 4.0, Micro SD Card slot, Micro SIM Card slot, HDMI 1.4, RS485, RS232, CAN Bus, SCADA, metal case

Additional chips
PMIC;X-Powers Limited;AXP221S;;1;
I2C Real Time Clock;Intersil;ISL1208;;1;
4-Port USB 2.0 Hub Controller;WCH;CH334S;;1;
8Kb I2C Serial EEPROM;Zetta Device;ZD24C08A;;1;
1Mbps High-Speed CAN Transceiver;SitCores;SIT1050;;1;
10Mbps 6-Channel Digital Isolator;2PAI Semi;π160M31;;2;
5V, 1A USB Power Distribution Switch;Silergy;SY6280AAC;;1;
Stand-Alone CAN Controller w/SPI Interface;Microchip;MCP2515;;1;
14Mbps Half-Duplex RS485/RS422 Transceiver;SitCores;SIT3088E;;5;
ESD Protected 14Mbps Half-Duplex RS485/RS422 Transceiver;SitCores;SIT3088E;;5;
5.5V, 3A, 1.2MHz Synchronous Step-Down Regulator;RYCHiP;RY3430;;2;
30V, 8.8A P-Channel MOSFET;Fairchild Semiconductor;FDS4435;;1;
24V Isolated DC/DC Converter;TD Power;TVRB2405YMD-15WR3;;1;
Ultra Low Capacitance TVS Array;SemTech;RClamp0524P;;3;
Low-Voltage CMOS Octal Buffer;On Semi;MC74LCX541;;1;
ESD Suppressor Diode;TI;TPD4E05U06;;3;

Other
Manuf/OEM/ODM
Retail
(Est.) release date May 2024
Country of manuf China
Radio 1
Radio1 module
Radio1 module IF
SDIO 2.0 (module)
Chip1
Broadcom BCM43430
Wireless interface OUI
none specified
Antenna Connector Type
U.FL
MIMO status
1x1:1
Wireless Standard
IEEE 802.11b/g/n
802.11n
up to 150 Mbps
802.11g
up to 54 Mbps
802.11b
up to 11 Mbps
WiFi Operating Frequency
2.4 GHz

For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented IC+ chipsets with specifications, see IC+.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Banana Pi device with specifications, see Banana Pi.

• 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

See also: Banana Pi and SinoVoIP

Specifications

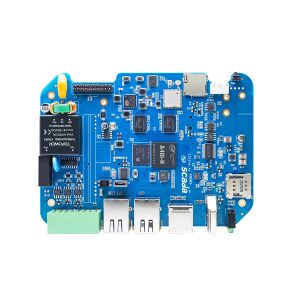

Banana Pi BPI-6204 Board
  • CPU: Allwinner A40i-H @1.2GHz Quad-core ARM (Cortex-A7)
GPU: Mali-400 MP2 @500MHz, OpenGL ES 2.0, H.265/HEVC
  • Storage: 8GB (eMMC 5.1) Flash, M.2 2242 (SATA SSD) slot
  • Memory: 2GB (DDR3) RAM (shared with GPU)
  • Wi-Fi: AMPAK AP6212 (Broadcom BCM43430)
802.11bgn (2.4GHz), BT 4.0, SDIO 2.0 (module)
  • Network: 1x GbE WAN, 1x FE (100M) LAN ports
  • PCIe: 1x M.2 (Key B) SATA, 1x M.2 (Key B) USB
  • USB: 2x USB 2.0 (Type-A), 1x USB 2.0 (OTG) ports
  • Power Source: 24V/1A (MSTB 2,5/3-ST-5.08)
