Banana Pi BPI M4 2G
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac (AC600) | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Banana Pi BPI-M4 | |||||||||||||||||||||
| Homepage | Product page | ||||||||||||||||||||
| WikiDevi.wi-cat.ru | Banana Pi BPI M4 2G | ||||||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||
| OpenWrt | Status Unknown | ||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||
| Platform | |||||||||||||||||||||
| Brand • Model • Rev | Banana Pi BPI M4 2G V1.0 | ||||||||||||||||||||
| FCC ID | none specified | ||||||||||||||||||||
| Type | single-board computer | ||||||||||||||||||||
| CPU1 | Realtek RTD1395 | ||||||||||||||||||||
| CPU1 Type | ARM Cortex-A53 | ||||||||||||||||||||
| CPU1 Speed | 1.4 GHz ( 4 cores ) | ||||||||||||||||||||
| Flash1 Chip | Winbond W25Q128JVSQ | ||||||||||||||||||||
| Flash1 Size | 16 MiB 16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> | ||||||||||||||||||||
| Flash2 Chip | Samsung KLM8G1GETF-B041 | ||||||||||||||||||||
| Flash2 Size | 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> | ||||||||||||||||||||
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> | ||||||||||||||||||||
| RAM1 Chip | Samsung K4A8G165WB-BCRC x 2 | ||||||||||||||||||||
| ETH chip1 | Realtek RTD1395 | ||||||||||||||||||||
| Ethernet Port Count | 1-100MbE-LAN | ||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u | ||||||||||||||||||||
| Stock bootloader | U-Boot 2015.07 | ||||||||||||||||||||
| Stock FW OS | Linux 4.9.119 Ubuntu 18.04 | ||||||||||||||||||||
| Expansion IF types | Mini PCIe, USB 2.0, USB 2.0 (OTG) | ||||||||||||||||||||
| Mini PCIe slots | 1 | ||||||||||||||||||||
| USB ports | 5 | ||||||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||||||
| Power | 5 VDC, 2 A | ||||||||||||||||||||
| Connector type | USB Female (Type-C) | ||||||||||||||||||||
| Serial Port (UART) | yes, 3-pin header, populated, 3.3V TTL, (115200 8N1) | ||||||||||||||||||||
|
Flags: | |||||||||||||||||||||
|
Additional chips | |||||||||||||||||||||
| Other | |||||||||||||||||||||
|
Default IP address: acquired via DHCP | |||||||||||||||||||||
| Manuf/OEM/ODM | SinoVoIP | ||||||||||||||||||||
| 3rd Party Firmware Support | Android 8.1 | ||||||||||||||||||||
| Retail | |||||||||||||||||||||
| (Est.) release date | May 2020 | ||||||||||||||||||||
| (Est.) initial retail price (in USD): | $43 | ||||||||||||||||||||
| ASIN |
B08DHHHN3R | ||||||||||||||||||||
| Country of manuf | China | ||||||||||||||||||||
| Radio 1 | |||||||||||||||||||||
| Radio1 module | unknown | ||||||||||||||||||||
| Radio1 module IF | USB | ||||||||||||||||||||
| Chip1 | Realtek RTL8821CU | ||||||||||||||||||||
| Wireless interface OUI | 7C:A7:B0 | ||||||||||||||||||||
| Antenna Connector Type | U.FL | ||||||||||||||||||||
| MIMO status | 1x1:1 | ||||||||||||||||||||
| Wireless Standard | IEEE 802.11a/b/g/n/ac | ||||||||||||||||||||
| 802.11ac | up to 433 Mbps | ||||||||||||||||||||
| 802.11n | up to 150 Mbps | ||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||||||||||
| WiFi Operating Frequency | 2.4 or 5 GHz | ||||||||||||||||||||
| |||||||||||||||||||||
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Banana Pi devices with specifications, see Banana Pi.
Overview
Specification
- CPU: Realtek RTD1395 Quad-core (ARM Cortex-A53)
- GPU: Mali-470 MP4
- Storage: 16MB SPI Flash, 8GB eMMC 5.1,
- Memory: 2GB DDR4
- WiFi & BT: Realtek RTL8821CU, BT 4.2, USB
- Video Outputs: Supports HDMI v2.0b
- Audio Outputs: analog via 3.5mm TRSS
- Power: 5V/2A via USB Type C or supported PoE Hat
- USB 2.0 ports: 4 USB 2.0 host and one USB 2.0 Type-C OTG
- GPIO: 40x pins header, compatible with Raspberry Pi B+
Links of Interest
- Banana Pi BPI-M4 on BPi Wiki
- Banana Pi BPI-M4' on Wikipedia
- Banana Pi M4 launches for $38 with M.2, 40-pin, and PoE on LinuxGizmos
- Banana Pi BPI-M4 SBC Gets 2GB RAM, Sells for $43 on CNX|Software
- The $38 Banana Pi BPI-M4 SBC on Hackster.io

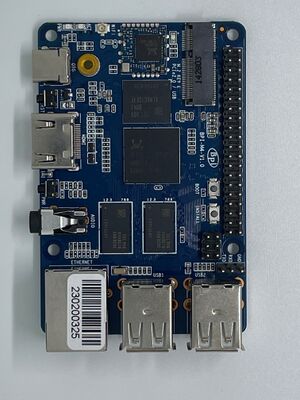

Pictures
