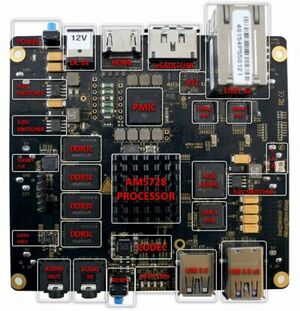

BeagleBoard X15
| Single Board Computer | |
 | |
| Support | Support page |
|---|---|
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Status Unknown |
| Tomato any flavor | Incompatible |
| Platform | |
| Brand • Model • Rev | BeagleBoard X15 |
| Type | single-board computer |
CPU1  | Texas Instruments AM5728 |
| CPU1 Type | ARM Cortex-A15 |
| CPU1 Speed | 1.5 GHz ( 2 cores ) |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (eMMC) |
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR3L 533 MHz) |
| RAM1 Chip | Brand? Model? x 4 |
| ETH chip1 | Brand? Model? |
| Ethernet Port Count | 2-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
|
| |
| Stock bootloader | U-Boot |
| Expansion IF types | eSATA, microUSB, microSD, USB 2.0, HDMI |
| USB ports | 5 |
| SD/MMC Slots | 1 |
| eSATA Ports | 1 |
| HDMI | 1 |
| USB Hub Compatible | Untested |
| Power | 12 VDC, ? A |
| Connector type |
barrel 5.5 mm (OD) 2.5 mm (ID) |
|
| |
|
| |
|
| |
For a list of all currently documented Texas Instruments (TI) chipsets with specifications, see Texas Instruments.
For a list of all currently documented BeagleBoard devices with specifications, see BeagleBoard.
Overview
Based on the TI AM5728 dual ARM® Cortex-A15 processor, the BeagleBoard®-X15 is a top performing, mainline Linux enabled, power-users’ dream board with a core tailored for every computing task and a high-speed interface for every connectivity need. With two 1.5‑GHz ARM® Cortex®-A15 cores for user interface, video and graphic accelerators, two 750‑MHz C66x DSP cores, quad core PRU and dual core Cortex-M4 cores for real time control, the BeagleBoard®-X15 was designed to give algorithms room to stretch! Measuring just 4″ x 4.2″ and equipped with USB 3.0/2.0, eSATA, HDMI, two 1‑Gb Ethernet, audio in/out and peripheral expansion, BeagleBoard®-X15 optimizes integration and connectivity,
- Get up close and personal with the features of the board in the Quick Start Guide
- BeagleBoard®-X15 Support Page
