BeagleBone Black (A5A)

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
BeagleBone Black

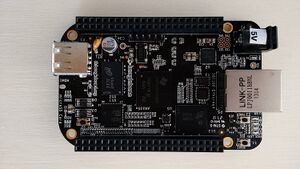

BeagleBone Black (A5A).jpg
Homepage Product page
WikiDevi.wi-cat.ru BeagleBone Black (A5A)
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev BeagleBoard BeagleBoneBlack (A5A)
Type single-board computer
CPU1 checkY Texas Instruments Sitara AM3359
CPU1 Type ARM Cortex-A8
CPU1 Speed 720 MHz
Flash1 Chip Micron MTFC2GMTEA-0F-WT
Flash1 Size 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />
RAM1 Size 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
RAM1 Chip Micron MT41K256M16HA-125
ETH chip1 Texas Instruments Sitara AM3359
ETH chip2 SMSC LAN8710A
Ethernet Port Count 1-100MbE-LAN
Wired Standard IEEE 802.3i/3u

Ethernet OUI: C8:A0:30

Stock bootloader U-Boot 2013.04 -dirty
Stock FW OS Linux 3.8.11 Angstrom v2012.12
Expansion IF types USB 2.0, MicroSD Card slot, GPIO
USB ports 2
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5 VDC, 1 A
Connector type barrel
5.5 mm (OD)
2.1 mm (ID)
Serial Port (UART) yes, 6-pin header, 3.3V TTL

Flags:
HDMI

Additional chips
Single Chip PMIC;Texas Instruments;TPS65217C;;1;
4 Channel ESD Solution for USB;Texas Instruments;TPD4S012DRY;;2;
500ma Low Noise Voltage Regulator;Texas Instruments;TL5209D;;1;
Power Distribution Switch;Texas Instruments;TPS2051BDGN;;1;
Single Positive-edge-triggered D-type Flip-flop;Texas Instruments;SN74LVC1G74DCT;;1;
Dual Buffer and Driver with 3-State Outputs;Texas Instruments;SN47LVC2G241DCU;;1;
Single Inverter Buffer Driver;Texas Instruments;SN74LVC1G06DCK;;1;
32K I2C Serial EEPROM;Microchip;24LC32AT-I/OT;;1;
Low-Power 3D HDMI Transmitter;NXP;TDA19988BHN;;1;

Other

Default IP address: 192.168.7.2
the IP 192.168.7.2 is used by 3 additional devices
of which 1 are BeagleBoard devices
Default login user: root
Default login password: blank
root:blank credentials used by 82 additional devices
of which 3 are BeagleBoard devices

Manuf/OEM/ODM CircuitCo
3rd Party Firmware Support Debian
, Arch Linux ARM • (List | DLs)
, OpenWrt • (List | Dev | DLs)
Retail
Availability common
(Est.) release date January 2013
(Est.) initial retail price (in USD): $49.99
ASIN B00CHYOLHK Flag of the United States.svg
Country of manuf US
 CPU1 brandFLA1RAM1
BeagleBoneTexas Instruments32,768 MiB34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br />32 GiB <br />256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
BeagleBone Black (A5A)Texas Instruments2,048 MiB2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />2 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
BeagleBone Black (Rev C)Texas Instruments4,096 MiB4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />4 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
BeagleBone Black WirelessOctavo Systems4,096 MiB4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />4 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
BeagleBone BlueOctavo Systems4,096 MiB4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />4 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />

For a list of all currently documented Microchip (SMSC) chipsets with specifications, see Microchip.
For a list of all currently documented Texas Instruments (TI) chipsets with specifications, see Texas Instruments.

For a list of all currently documented BeagleBoard devices with specifications, see BeagleBoard.

Overview

OEM: CircuitCo, SeeedStudio (LGX BB100)

The board can be powered by 3 different methods:

  • 5V/1A power supply plugged into the connector
  • USB Female (Micro-B)
  • Expansion connectors

Micro HDMI output

Links of Interest

Flashing

Flashing OpenWrt

OpenWrt Target: omap
OpenWrt Subtarget: generic
OpenWrt Package architecture: arm_cortex-a8_vfpv3
Support started version: 19.07.0
Current supported version: 24.10.5
WLAN Comment: No WLAN

Please insert instructions here

See also

https://beagleboard.org/boards
