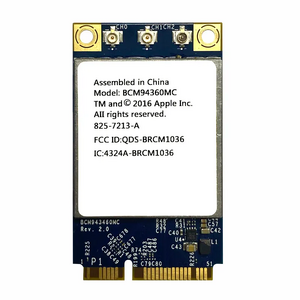

Broadcom BCM94360MC

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC1750)
802.11ac 3x3 Wireless Mini PCIe Adapter
Generic mini-pcie card icon.png
WikiDevi.wi-cat.ru Broadcom BCM94360MC
Platform
BrandModelRev Broadcom BCM94360MCH5
Series BCM94360
Interface Mini PCIe
Connector Mini PCIe
Form factor (oversized)

ID:14e4:43a0 (15 addl. devices)
Windows: PCI\VEN_14E4&DEV_43A0

FCCID PY312100188, PY312100189
Chip1 Broadcom BCM4360

OUI: none specified

Antenna Connection U.FL
MIMO status 3x3:3
Wireless Standards IEEE 802.11a/b/g/n/ac
802.11ac up to 1300 Mbps
802.11n up to 450/450 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other
Manuf/OEM/ODM Foxconn T77H391

Additional chips
5GHz 23dBm Power Amp w/ Power Detector;Skyworks;SE5003L;;3;

Probable Linux driver
should work with Broadcom's latest wl driver
6.30.223.126 is now available on Broadcom's site
6.30.223.30 is available in...
Alberto Milone's Broadcom testing PPA or the broadcom-wl packages (w/ dkms or w/ no dkms) in the Arch AUR

PCI ID not yet observed in any mainline kernel /
this list (note: outdated)

(see also passys)

Windows driver
these might work, maybe
Broadcom BCM43XX Driver Win7/8/10

Retail
Availability reference design
FCC approval date 09 May 2012
Country of manuf China
 FCC ID
Netgear R6300 v1PY312100188
Wistron NeWeb DNXB-C1PY312100188
 FCC ID
Netgear R6200v1PY312100189

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.

For a list of all currently documented Broadcom devices with specifications, see Broadcom.

450 Mbps - 3SS 2.4GHz 802.11n (40MHz chan.),
1300 Mbps - 3SS 5GHz 802.11ac (80MHz chan.) = AC1750 class

Overview

"BCM94360MCH5", "T77H391"appears to be silkscreened on the board.

This is presumably an 11ac module for AP's.

Wi-Fi Certified : WFA58711 (as of 02/23/2015)

Netgear R6300 v1 - Broadcom BCM4360 3T3R 802.11ac
Netgear R6200v1 - Broadcom BCM4352 2T2R 802.11ac

Notes

Specifications

#    macmid

#    BCM94360mc          0D:D
#    BCM94360mci         0D:E
#    BCM94360cs          0D:F
#    BCM94360mch5        0E:5
#    BCM94331csd         0E:B
#    BCM94352hmb         0F:1
#    BCM94352mch5        0F:2
#    BCM94360mc5         0F:5
#    BCM94360cd          0F:E
#    BCM94331mch5        09:3
#    BCM94360mch2        10:E

BCM4360_D11AC_ID	0x43a0	/* ac dualband PCI */
BCM4360_D11AC2G_ID	0x43a1	/* 4360 802.11ac 2.4G device */
BCM4360_D11AC5G_ID	0x43a2	/* 4360 802.11ac 5G device */
BCM43602_D11AC_ID	0x43ba	/* ac dualband PCI devid SPROM */
BCM43602_D11AC2G_ID	0x43bb	/* 43602 802.11ac 2.4G device */
BCM43602_D11AC5G_ID	0x43bc	/* 43602 802.11ac 5G device */

See also

Broadcom BCM94709R-M/H 802.11 a/n/ac Access Point
CPU: Broadcom BCM4709A0, WLAN: BCM4366E, 4x PAM/LNA
FCC ID: QDS-BRCM1091 (2017-04-14) - BCM94709R-M
FCC ID: QDS-BRCM1092 (2017-04-18) - BCM94709R-H
FCC ID: MSQ-PCIE0U00 (2015-11-23)
