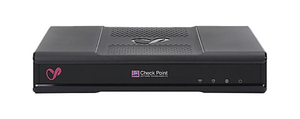

Check Point V-80

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
Security Gateway
WikiDevi.wi-cat.ru Check Point V-80
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
Brand • Model • Rev Check Point V-80 Rev: 1.03
Board ID 00EB557-00-103-RS
Type network security platform
CPU1 checkY Marvell 88F7040
CPU1 Type ARMv8 Cortex-A72
CPU1 Speed 1.4 GHz ( 4 cores ) 64-bit
Flash1 Chip Kioxia THGBMNG5D1LBAIL
Flash1 Size 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (eMMC)
RAM1 Size 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR4 SDRAM)
RAM1 Chip Nanya NT5AD512M8D3-HR x 4
ETH chip1 Marvell 88F7040
ETH chip2 Marvell 88E1512
Switch Marvell 88E6352
Ethernet Port Count 2-1GbE-WAN
4-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

Ethernet OUI: 00:1C:7F (9 E, 3 W)

Stock bootloader U-Boot 2018.03 release-19.06.3
Stock FW OS Linux 4.14.76 Check Point RD-6281-A
Expansion IF types USB 3.0, Mini PCIe, Micro SD Card slot
Mini PCIe slots 1
USB ports 1
SD/MMC Slots 1
USB Hub Compatible Untested
Power 12 VDC, 3.3 A
Connector type barrel
5.5 mm (OD)
2.5 mm (ID)
9.5 mm (LEN)
Serial Port (UART) yes, console port, USB Female (Type-C), (115200 8N1)
JTAG Port yes, 20-pin header, unpopulated, CN3

Flags:
Micro SD Card slot, RTC w/ battery, heatsink, power switch

Additional chips
Hardware Monitoring IC;Novoton;NCT7802Y;;2;
USB-to-UART Bridge Controller;Silicon Labs;CP2102N;;1;
I2C Serial Real Time Clock;Maxim Integrated;DS1337;;1;
10A, 18V Synchronous Step-Down Controller;MPS;MPQ8636;;1;
High Current Synchronous Buck Converter;ON Semi;NCP3235;;1;
2-Wire 4K Bit Serial EEPROM;Giantec Semi;GT24C04A;;1;
3A LDO Regulator;Richtek;RT9018A;;1;

Other

Default IP address: 192.168.1.1
the IP 192.168.1.1 is used by 1359 additional devices
of which 7 are Check Point devices
Default login user: admin
Default login password: admin
admin:admin credentials used by 1358 additional devices
of which 2 are Check Point devices

3rd Party Firmware Support OpenWrt • (List | Dev | DLs)
Retail
Newegg 9SIAGBAHNW2554
ASIN B08QMJYRGC
Country of manuf Taiwan
 CPU1 brandFLA1RAM1
Check Point V-80Marvell4,096 MiB4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />4 GiB <br />2,048 MiB2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />2 GiB <br />
Check Point V-80WMarvell4,096 MiB4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />4 GiB <br />2,048 MiB2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />2 GiB <br />

For a list of all currently documented Marvell chipsets with specifications, see Marvell.

For a list of all currently documented Check Point devices with specifications, see Check Point.

Overview

"00EB557-00-103-RS", "Check Point V-80", and "Rev:1.03" are silk-screened on the board top.

Hardware specification

SoC: Quad-Core ARM (Cortex-A72)
  • Storage: 4GB (eMMC) Flash
  • Memory: 2GB (DDR4) SDRAM
  • Network: 6x GbE (WAN/LAN) ports
  • PCIe: 1x Mini PCIe port
  • USB: 1x USB 3.0 port
  • Power Source: 12V/3.3A via barrel

Links of Interest

Datasheet

Flashing

Flashing OpenWrt

Target: mvebu
Subtarget: cortexa72
Package architecture: aarch64_cortex-a72
Supported Since Commit
Support started version: 25.12.0
Current supported version: 25.12.1
LAN Hardware: Marvell 88E6352
WLAN Comment: V-80W WiFi variant has WLAN
Installation method(s):
see git-commit
Recovery method(s):
see git-commit
git • >>
mvebu: add support for Check Point V-80
Check Point V-80 (Quantum Spark 1550 Appliance) is an Appliance, based
on Armada 7040 (88F7040).

Specification:

- SoC             : Marvell Armada 7040 (88F7040)
- RAM             : DDR4 2 GiB (4x Nanya NT5AD512M8D3-HR)
- Flash           : eMMC 4 GiB (Toshiba THGBMNG5D1LBAIL)
- Ethernet        : 6x 10/100/1000 Mbps
  - LAN 1-5       : Marvell 88E6352
  - WAN           : Marvell 88E1512
- LEDs/Keys (GPIO): 6x/1x
- UART            : "CONSOLE" port (USB 1.1 Type-C)
  - chip          : Silicon Labs CP2102N
  - port          : ttyS0
  - settings      : 115200bps 8n1
- HW Monitoring   : 2x nuvoTon NCT7802Y
- USB             : USB 3.0 Type-A
- Power           : 12 VDC, 3.3 A
  - plug          : DC Plug 2.5/5.5 mm (inner/outer)

Flash instruction (common):

1. Boot V-80 normally
2. Login to the vendor CLI (default: admin/admin) and login to the Linux
   CLI by `expert` command
3. Update U-Boot environment variables by the following commands

   fw_setenv bootcmd_ow_usb 'usb start; load usb 0:1 ${loadaddr} boot.scr && source ${loadaddr}'
   fw_setenv bootcmd_ow_emmc 'run set_mmc_internal; mmc read ${loadaddr} ${prim_header_mmc_blk} 4 && source ${loadaddr}'
   fw_setenv bootcmd 'run bootcmd_ow_usb; run bootcmd_ow_emmc; run bootcmd_part${activePartition};'

   Attention: don't forget single quatations of values to prevent
              expansion of each variables

4. Turn off the device

Flash instruction (USB-boot):

1. Burn (squashfs|ext4)-sdcard.img.gz to USB storage
2. Connect that storage to the USB 3.0 port on V-80
3. Turn on V-80 and it will be booted with OpenWrt in that USB storage

Flash instruction (eMMC-boot):

1. Copy initramfs image, dtb and bootsctipt to the USB storage with
   renaming

   initramfs.bin -------> Image
   dtb -----------------> armada-7040-v-80.dtb
   bootscript (.scr) ---> boot.scr

2. Connect that storage to the USB 3.0 port on V-80
3. Turn on V-80 and it will be booted with OpenWrt initramfs image in
   that USB storage
4. Upload (squashfs|ext4)-sysupgrade.gz to V-80
5. Perform sysupgrade with the uploaded image
6. Wait ~100 seconds to complete flashing

Reverting to stock firmware:

1. Turn on V-80 and interrupt booting by Ctrl + C
2. Select "4. Restore to Factory Defaults (local)"
3. Wait ~180 seconds to complete restoring and rebooting

Notes:

- V-80 has some HW versions. Internal MicroSD card slot and mPCIe slot
  is available on some HW versions, but not on the other HW versions.

  confirmed (MicroSD/mPCIe slots):

  - 1.0.1: unavailable
  - 1.0.3: available

- The partition table in the internal eMMC has single partition, but
  "blkdevparts=" parameter will be passed from the bootloader and that
  definition will be used instead.

MAC addresses:

LAN: 00:1C:7F:xx:xx:4B (mmcblk1boot0, ethaddr (text))
WAN: 00:1C:7F:xx:xx:4A (mmcblk1boot0, eth1addr (text))

Pictures

User Images
  • Board Top
    Board Top
  • Board Bottom
    Board Bottom
  • Internal View
    Internal View
