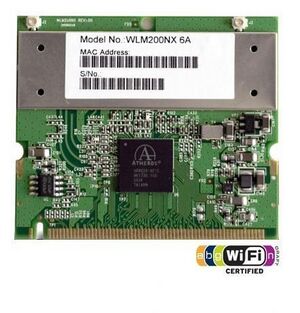

Compex WLM200NX

abgn (AN600)
Wireless-N Network Mini PCI Adapter
WikiDevi.wi-cat.ru	Compex WLM200NX
Platform
Brand • Model • Rev	Compex WLM200NX
Interface	Mini PCI
Connector	Mini PCI
ID:168c:0029 (11 addl. devices) SS: 168c:2096 Windows: PCI\VEN_168C&DEV_0029&SUBSYS_2096168C
FCCID	TK4-08-WLM200NX, TK4-09-WLM200NX, TK4-09-MMNX, TK4WLM200NX
Chip1	Atheros AR9220
OUI: 00:80:48 (3 E, 14 W), 04:F0:21 (1 E, 27 W)
Antenna Connection	U.FL
MIMO status	2x2:2
Wireless Standards	IEEE 802.11a/b/g/n
802.11n	up to 300/300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
Operating Frequency	2.4 or 5 GHz
Probable Linux driver ath9k (in backports) PCI ID first seen in kernel v2.6.27 (2008-10-09) (see also passys)
Windows driver see ath-drivers.eu (Win 7/8/10)
Retail
Availability	End of Life
FCC approval date	20 January 2009
ASIN	B003N3EOA8

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.

For a list of all currently documented Compex device with specifications, see Compex.

• 300 Mbps - 2SS 5GHz 802.11n (40MHz chan.),

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AN600 class

Overview

This device appears to be used in the Eion Wireless StarPlus CPE

FCC ID: XEC-SP1110-01 (07/26/2012)

See also Compex WLM200NX rev 1.01 - FCC ID: TK4WLM200NX (09/07/2016)

2x SiGe (Skyworks) SE2593A20 - Dual Band 802.11n WLAN RF Front-End Module

Info from Compex

This product is no longer available, it has been replaced by the Compex WLE200NX.

Get the latest Updates from Compex Systems - Link

Notes

Specifications derived from the datasheet

Specifications, per the datasheet, follow..

11a/g TX Output Power (all ±2 dB) 802.11a 6-36Mbps, 18 dBm 48Mbps, 17 dBm 54Mbps, 16 dBm 802.11g 6-24Mbps, 20 dBm 36Mbps, 19.5 dBm 48Mbps, 18.5 dBm 54Mbps, 17 dBm 11n TX Output Power (per chain, ±2 dB) 2.4GHz, HT20, MCS 0/8, 18 dBm 2.4GHz, HT20, MCS 1/9, 18 dBm 2.4GHz, HT20, MCS 2/10, 18 dBm 2.4GHz, HT20, MCS 3/11, 17.5 dBm 2.4GHz, HT20, MCS 4/14, 17.5 dBm 2.4GHz, HT20, MCS 5/13, 17 dBm 2.4GHz, HT20, MCS 6/14, 16 dBm 2.4GHz, HT20, MCS 7/15, 15 dBm 2.4GHz, HT40, MCS 0/8, 18 dBm 2.4GHz, HT40, MCS 1/9, 18 dBm 2.4GHz, HT40, MCS 2/10, 17.5 dBm 2.4GHz, HT40, MCS 3/11, 17 dBm 2.4GHz, HT40, MCS 4/14, 16.5 dBm 2.4GHz, HT40, MCS 5/13, 16 dBm 2.4GHz, HT40, MCS 6/14, 15.5 dBm 2.4GHz, HT40, MCS 7/15, 14.5 dBm 5GHz, HT20, MCS 0/8, 18 dBm 5GHz, HT20, MCS 1/9, 18 dBm 5GHz, HT20, MCS 2/10, 17.5 dBm 5GHz, HT20, MCS 3/11, 17.5 dBm 5GHz, HT20, MCS 4/14, 16.5 dBm 5GHz, HT20, MCS 5/13, 16 dBm 5GHz, HT20, MCS 6/14, 15 dBm 5GHz, HT20, MCS 7/15, 12 dBm 5GHz, HT40, MCS 0/8, 16.5 dBm 5GHz, HT40, MCS 1/9, 16.5 dBm 5GHz, HT40, MCS 2/10, 16.5 dBm 5GHz, HT40, MCS 3/11, 16.5 dBm 5GHz, HT40, MCS 4/14, 16.5 dBm 5GHz, HT40, MCS 5/13, 14.5 dBm 5GHz, HT40, MCS 6/14, 14 dBm 5GHz, HT40, MCS 7/15, 9 dBm

11a/g Receiver Sensitivity (all ±2 dB) 802.11a -94 dBm @ 6-9Mbps -93 dBm @ 12Mbps -90 dBm @ 18Mbps -86 dBm @ 24Mbps -83 dBm @ 36Mbps -79 dBm @ 48Mbps -77 dBm @ 54Mbps 802.11b -94 dBm @ 1Mbps -94 dBm @ 5.5 Mbps -94 dBm @ 11Mbps 802.11g -94 dBm @ 6-9Mbps -93 dBm @ 12Mbps -90 dBm @ 18Mbps -86 dBm @ 24Mbps -83 dBm @ 36Mbps -80 dBm @ 48Mbps -78 dBm @ 54Mbps 11n Receiver Sensitivity (all ±2 dB) 2.4GHz, HT20, MCS 0, -93 dBm 2.4GHz, HT20, MCS 1, -92 dBm 2.4GHz, HT20, MCS 2, -90 dBm 2.4GHz, HT20, MCS 3, -86 dBm 2.4GHz, HT20, MCS 4, -83 dBm 2.4GHz, HT20, MCS 5, -78 dBm 2.4GHz, HT20, MCS 6, -77 dBm 2.4GHz, HT20, MCS 7, -74 dBm 2.4GHz, HT40, MCS 0, -90 dBm 2.4GHz, HT40, MCS 1, -89 dBm 2.4GHz, HT40, MCS 2, -87 dBm 2.4GHz, HT40, MCS 3, -84 dBm 2.4GHz, HT40, MCS 4, -80 dBm 2.4GHz, HT40, MCS 5, -76 dBm 2.4GHz, HT40, MCS 6, -74 dBm 2.4GHz, HT40, MCS 7, -72 dBm 5GHz, HT20, MCS 0, -93 dBm 5GHz, HT20, MCS 1, -91 dBm 5GHz, HT20, MCS 2, -87 dBm 5GHz, HT20, MCS 3, -85 dBm 5GHz, HT20, MCS 4, -82 dBm 5GHz, HT20, MCS 5, -78 dBm 5GHz, HT20, MCS 6, -77 dBm 5GHz, HT20, MCS 7, -74 dBm 5GHz, HT40, MCS 0, -90 dBm 5GHz, HT40, MCS 1, -88 dBm 5GHz, HT40, MCS 2, -85 dBm 5GHz, HT40, MCS 3, -82 dBm 5GHz, HT40, MCS 4, -80 dBm 5GHz, HT40, MCS 5, -76 dBm 5GHz, HT40, MCS 6, -74 dBm 5GHz, HT40, MCS 7, -72 dBm
