Comtrend PG-9172AC
| abgn+ac (AC1200) | |
|---|---|
| G.hn WiFi AC Powerline Ethernet Adapter | |
|
| |
| Homepage | Product page |
| WikiDevi.wi-cat.ru | Comtrend PG-9172AC |
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Status Unknown |
| Tomato any flavor | Incompatible |
| Platform | |
| Brand • Model • Rev | Comtrend PG-9172AC |
| FCC ID | L9VPG9172AC |
| Type | Powerline Access Point |
| CPU1 | Celeno CL1860 |
| CPU1 Type | MIPS 24KEc |
| CPU1 Speed | not specified |
| CPU2 | Marvell 88LX3142 |
| Flash1 Chip | Macronix Model? |
| Flash1 Size | 8 MiB 8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br /> |
| RAM1 Size | 128 MiB 134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> |
| RAM1 Chip | EtronTech EM68C16CWQE-25H |
| RAM2 Size | 64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> |
| RAM2 Chip | EtronTech EM68B16CWQH-25H |
| ETH chip1 | Celeno CL1860 |
| ETH chip2 | Atheros AR8035-A |
| ETH chip3 | Marvell 88E1510 |
| Ethernet Port Count | 1-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
| Expansion IF types | none specified |
| Power | 110-240 VAC ~ 50/60 Hz, 0.2 A |
| Connector type | AC (direct), corded |
|
Flags: | |
|
Additional chips | |
| Other | |
|
Default SSID: ComtrendXXXX_2.4GHz (2 addl. devices) | |
| Manuf/OEM/ODM | Comtrend |
| Retail | |
| FCC approval date | 29 August 2017 |
| Country of manuf | China |
| Radio 1 | |
| Chip1 | Celeno CL1860 |
| Wireless interface OUI | F8:8E:85 |
| Antenna Connector Type | U.FL |
| MIMO status | 2x2:2 |
| Wireless Standard | IEEE 802.11b/g/n |
| 802.11n | up to 300 Mbps |
| 802.11g | up to 54 Mbps |
| 802.11b | up to 11 Mbps |
| WiFi Operating Frequency | 2.4 GHz |
| Radio 2 | |
| Chip1 | Celeno CL2200 |
| Wireless interface OUI | F8:8E:85 |
| Antenna Connector Type | U.FL |
| MIMO status | 2x2:2 |
| Wireless Standard | IEEE 802.11a/n/ac |
| 802.11ac | up to 867 Mbps |
| 802.11n | up to 300 Mbps |
| 802.11a | up to 54 Mbps |
| WiFi Operating Frequency | 5 GHz |
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Celeno (Ralink) chipsets with specifications, see Celeno.
For a list of all currently documented Marvell chipsets with specifications, see Marvell.
For a list of all currently documented Comtrend devices with specifications, see Comtrend.
Overview
"50XX14-473" is silkscreened on the board in the FCC photos.
There appears to be an internal GbE connection between the two CPUs
handled by the Marvell 88E1510 and a second Atheros AR8035-A chip.
News Release: G.hn Silicon to Power Connectivity on Marvell
- Marvell 88LX3142, MAC/BBP G.hn;
- Marvell 88LX2718/88LX2720, AFE G.hn;
- Marvell 88E1510/88E1512, Gigabit PHY;
Pictures
See also
- Comtrend PG-9172AC - G.hn WiFi AC Powerline Adapter • PPage

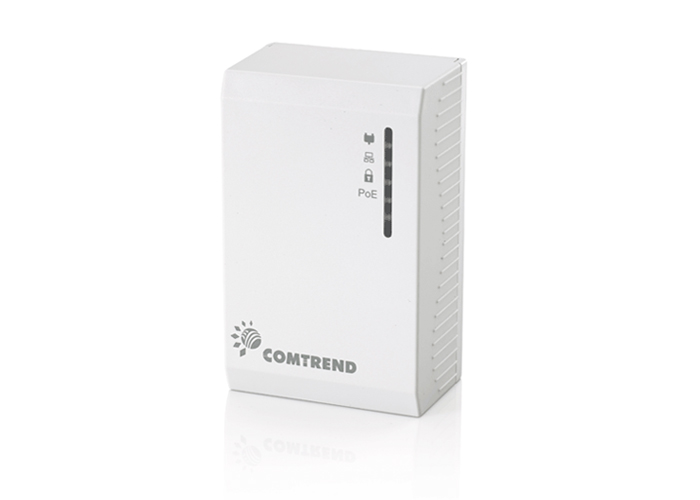

- Comtrend PG-9172PoE - G.hn PoE Powerline Adapter • PPage
- Comtrend PG-9172PT - 1200Mbps G.hn Powerline Adapter • PPage
- Comtrend PG-9172 - 1200 Mbps G.hn Powerline Adapter • PPage
- SoC: Marvell 88LX3142 (G.hn Digital Baseband)
- AFE: Marvell 88LX2718 (Analog Front End chip)
- LAN: Marvell 88E1510 (Gigabit Ethernet PHY)
- RAM: 8MB, Flash: 8MB, OUI: F8:8E:85,
- PSU: 100-240VAC ~50/60Hz 0.2A • AT • SNB
- Comtrend PG-9171n - G.hn WiFi N Powerline Adapter • PPage
- Comtrend PG-9072 - AC1200 G.hn Powerline Adapter • PPage
- SoC: Marvell 88LX3142 (Baseband), AFE: Marvell 88LX2718
- WiSoC: Celeno CL1860 @580MHz MIPS 24KEc WiSoC • PR
- WLAN 2.4GHz: 2T2R 802.11n (rebranded MediaTek MT7620A)
- WLAN 5GHz: Celeno CL2200 (rebranded MediaTek MT7612EN)
- 5GHz Amplifier: 2x Skyworks SKY85717-21 (2T2R 802.11an/ac)
- RAM: EtronTech EM68C16CWQE-25H (128MB DDR2-800)
- Flash: Macronix MX25L12835FM2I-10G (16MB)
- LAN: Atheros AR8035-A (1x Gigabit port)
- + Marvell 88E1510 (Gigabit Ethernet PHY)
- Antenna: 2x Dual-Band antenna (Airgain N2425D)
- Comtrend PG-9073 - 1GbE G.hn Powerline Adapter • PPage
