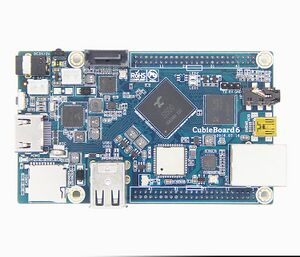

Cubietech Cubieboard 6

multiple revisions of this device, use caution

bgn (N150)
Single-board Computer
Homepage	Product page
WikiDevi.wi-cat.ru	Cubietech Cubieboard 6
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	Cubietech Cubieboard 6
FCC ID	none specified
Type	single-board computer, development board
CPU1 ?	Actions Semi S500
CPU1 Type	ARM Cortex-A9 R4
CPU1 Speed	1.3 GHz ( 4 cores )
Flash1 Chip	SK hynix H26M41103HPR
Flash1 Size	8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br />
Flash2 Chip	Macronix KH25L4006EM1I-12G
Flash2 Size	512 KiB 0.5 MiB <br />524,288 B <br />4,096 Kib <br />4 Mib <br />4.882812e-4 GiB <br />
RAM1 Size	2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />
RAM1 Chip	Samsung K4E6E304EB-EGCF
ETH chip1	Actions Semi S500
ETH chip2	Realtek RTL8201F
Ethernet Port Count	1-100MbE-LAN
Wired Standard	IEEE 802.3i/3u
802dot11 OUI: none specified
Stock bootloader	U-Boot 2015.07
Stock FW OS	Linux 3.10.52 Android 5.1
Expansion IF types	USB 2.0, SATA 3.0, Micro SD Card slot
USB ports	2
SD/MMC Slots	1
SATA Ports	1
USB Hub Compatible	Untested
Power	5 VDC, 2 A
Connector type	barrel 4 mm (OD) 1.7 mm (ID) 9.5 mm (LEN)
Serial Port (UART)	yes, 3.3V TTL, 3-pin header, populated, (115200 8N1)
Flags: Micro SD Card slot, Bluetooth 4.1 BLE, HDMI 1.4a, IR receiver, RTC w/ battery backup, Audio in/out (3.5mm) TRRS, battery backup, MIPI DSI, MIPI CSI, LVDS, GPIO
Additional chips PMU Audio Subsystem;Actions Semi;ATC2603C;;1; USB 3.1 to SATA 6Gb/s Bridge Controller;JMicron;JMS578;;1; USB 3.0 and USB 2.0 Combo Switch;Pericom;PI3USB3102;;1;
Retail
(Est.) release date	December 2017
(Est.) initial retail price (in USD):	$69
ASIN	B07226XM53
Country of manuf	China
Radio 1
Radio1 module	AMPAK AP6212
Radio1 module IF	SDIO (module)
Chip1	Broadcom BCM43430
Wireless interface OUI	none specified
Antenna Connector Type	U.FL
MIMO status	1x1:1
Wireless Standard	IEEE 802.11b/g/n
802.11n	up to 150 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz
CPU1 brand Radio1 chip1 brand Radio1 chip2 brand Cubietech Cubieboard Allwinner Cubietech Cubieboard 2 Allwinner Cubietech Cubieboard 4 Allwinner Broadcom Broadcom Cubietech Cubieboard 5 Allwinner Broadcom Broadcom Cubietech Cubieboard 6 Actions Semi Broadcom Cubietech Cubieboard 7 Actions Semi Broadcom

For a list of all currently documented Actions (Micro/Semi) chipsets with specifications, see Actions.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Cubietech devices with specifications, see Cubietech.

• 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

See also: List of Single-board computers

Hardware specification

• CPU: Actions Semi S500 @1.3GHz

SoC: Quad-core ARM (Cortex-A9)

• GPU: PowerVR SGX544
• Memory: 2GB (LPDDR3) RAM
• Onboard Storage: 8GB eMMC,

TF (max.32GB)/MMC card slot,

SATA 3 port implemented via USB 3.0

switch and USB 3.0 to SATA controller
