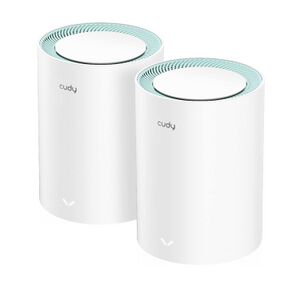

Cudy M1300 v2

abgn+ac (AC1200)
AC1200 Gigabit Whole Home Wi-Fi System
Homepage	Product page
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Supported
Tomato any flavor	Incompatible
Gargoyle	Status Unknown
Platform
Brand • Model • Rev	Cudy M1300 v2
FCC ID	none specified
Type	wireless router
CPU1 Y	MediaTek MT7621AT
CPU1 Type	MIPS 1004Kc
CPU1 Speed	880 MHz ( 2 cores ) 16-bit
Flash1 Chip	Brand? Model?
Flash1 Size	16 MiB 16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />
RAM1 Size	128 MiB 134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />
RAM1 Chip	Brand? Model?
ETH chip1	MediaTek MT7621AT
Switch	MediaTek MT7621AT
Ethernet Port Count	2-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
802dot11 OUI: none specified
Stock bootloader	U-Boot
Expansion IF types	none specified
Power	12 VDC, 1 A
Connector type	barrel
Serial Port (UART)	yes, 3.3V TTL, (115200 8N1)
Other
3rd Party Firmware Support	OpenWrt • (List | Dev | DLs)
Radio 1
Chip1	MediaTek MT7603EN
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11b/g/n
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz
Radio 2
Chip1	MediaTek MT7613BE
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11a/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	5 GHz

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented Cudy devices with specifications, see Cudy.

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.),

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.) = AC1200 class

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)

Target: ramips
Subtarget: mt7621
Package architecture: mipsel_24kc
Supported Since Commit
Support started version: 24.10.1
Current supported version: 24.10.5

Unsupported Functions:
DFS
WLAN Hardware: MediaTek MT7603EN, MediaTek MT7613BE
Installation method(s):
see git-commit
Install Comment:
Need a signed OpenWrt intermediary image from Cudy before installing official OpenWrt image.
Recovery method(s):
see git-commit
Comment:
No v1 support

git • >>

ramips: Add support for Cudy M1200 v1 The M1200 v1 is similar to the TR1200 series from Cudy. Differences: - Only 1 LAN port - No USB Specifications: - MT7628 - MT7628AN (2.4G b/g/n) and MT7613BE (5G ac/n) wifi - 128 MB RAM - 16 MB flash MAC Addresses: - There is one on the label, e.g. xx:xx:xx:xx:xx:A4 - LAN (bottom connector) is the same as the label, e.g. xx:xx:xx:xx:xx:A4 - WAN (top connector) is label + 1, e.g. xx:xx:xx:xx:xx:A5 - WLAN (2.4G) is the same as the label, e.g. xx:xx:xx:xx:xx:A4 - WLAN (5G) is label + 2, e.g. xx:xx:xx:xx:xx:A6 UART: - is available via the pin holes on the board - The pinout is printed to the board: P: VCC, G: GND, R: RX, T:TX - RX and TX require solder bridges to be installed - Do NOT connect VCC - Settings: 3.3V, 115200, 8N1 GPIO: - There are two LEDs: Red (GPIO 4) and White (GPIO 0) - There are two buttons: Reset (GPIO 11) and WPS (GPIO 5) Migration to OpenWrt: - Download the migration image from the Cudy website (it should be available as soon as OpenWrt officially supports the device) - Connect computer to LAN (bottom connector) and flash the migration image via OEM web interface - OpenWrt is now accessible via 192.168.1.1 Revert back to OEM firmware: - Set up a TFTP server on IP 192.168.1.88 and connect to the WAN port (upper port) - Provide the Cudy firmware as recovery.bin in the TFTP server - Press the reset button while powering on the device - Recovery process is started now - When recovery process is done, OEM firmware is accessible via 192.168.10.1 again General information: - No possibility to load a initramfs image via U-Boot because there is no option to interrupt U-Boot
