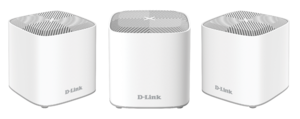

D-Link COVR-X1860 rev A1
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac+ax (AX1800) | |
|---|---|
| COVR AX1800 Dual Band Whole Home Mesh Wi-Fi 6 System | |
|
| |
| Homepage | Product page |
| Wikipedia | D-Link |
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Supported |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |
| Brand • Model • Rev | D-Link COVR-X1860 rev A1 |
| FCC ID | none specified |
| Type | wireless router |
| Series | COVR |
| CPU1 | MediaTek MT7621AT |
| CPU1 Type | MIPS 1004Kc |
| CPU1 Speed | 880 MHz ( 2 cores ) 16-bit |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 128 MiB 134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (NAND) |
| RAM1 Size | 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | MediaTek MT7621AT |
| Switch | MediaTek MT7530 |
| Ethernet Port Count | 2-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
| 802.1q vlan | Yes |
|
802dot11 OUI: none specified | |
| Expansion IF types | none specified |
| Power | 12 VDC, 1.5 A |
| Connector type | barrel |
|
| |
|
| |
| Other | |
|
| |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
| Retail | |
| Availability | End of Life |
| Radio 1 | |
| Chip1 | MediaTek MT7915DAN |
| Chip2 | MediaTek MT7975DN |
| Wireless interface OUI | none specified |
| Antenna Connector Type | none specified |
| MIMO status | 2x2:2 |
| Wireless Standard | IEEE 802.11b/g/n/ax |
| 802.11ax | up to 574 Mbps |
| 802.11n | up to 300 Mbps |
| 802.11g | up to 54 Mbps |
| 802.11b | up to 11 Mbps |
| WiFi Operating Frequency | 2.4 GHz |
| Radio 2 | |
| Chip1 | MediaTek MT7915DAN |
| Chip2 | MediaTek MT7975DN |
| Wireless interface OUI | none specified |
| Antenna Connector Type | none specified |
| MIMO status | 2x2:2 |
| Wireless Standard | IEEE 802.11a/n/ac/ax |
| 802.11ax | up to 1201 Mbps |
| 802.11ac | up to 867 Mbps |
| 802.11n | up to 300 Mbps |
| 802.11a | up to 54 Mbps |
| WiFi Operating Frequency | 5 GHz |
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
For a list of all currently documented D-Link devices with specifications, see D-Link.
Overview
See also: D-Link COVR series
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: ramips
OpenWrt Subtarget: mt7621
OpenWrt Package architecture: mipsel_24kc
Support started version: 23.05.2
Current supported version: 24.10.4
OpenWrt Subtarget: mt7621
OpenWrt Package architecture: mipsel_24kc
Support started version: 23.05.2
Current supported version: 24.10.4
Please insert instructions here
