D-Link DNS-313
From TechInfoDepot
Jump to navigationJump to search
 | This article's use of red links may need cleanup. |

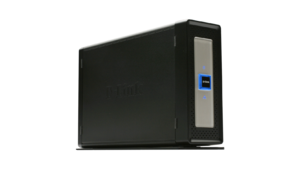

| DNS-313 1-Bay Network Storage enclosure | |
 | |
| Homepage | Product page |
|---|---|
| Support | Support page |
| Wikipedia | D-Link |
| WikiDevi.wi-cat.ru | D-Link DNS-313 |
| 3rd Party Firmware | |
| dd-wrt | Incompatible |
| OpenWrt | Supported |
| Tomato any flavor | Incompatible |
| Gargoyle | Incompatible |
| Platform | |
| Brand • Model • Rev | D-Link DNS-313 |
| Type | NAS, NAS enclosure |
CPU1  | Cortina Systems CS3512 |
| CPU1 Speed | 300 MHz |
| Flash1 Chip | cFeon EN29LV400AB-70TCP |
| Flash1 Size | 512 KiB 0.5 MiB <br />524,288 B <br />4,096 Kib <br />4 Mib <br />4.882812e-4 GiB <br /> |
| RAM1 Size | 64 MiB 67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> |
| RAM1 Chip | Nanya NT5DS32M16BS-6K |
| ETH chip1 | Cortina Systems CS3512 |
| ETH chip2 | Realtek RTL8211B |
| Ethernet Port Count | 1-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
|
| |
| Stock bootloader | RedBoot |
| Stock FW OS | Linux 2.6.3 |
| Expansion IF types | USB 2.0 (slave), SATA |
| USB ports | 1 |
| SATA Ports | 1 |
| USB Hub Compatible | no |
| Power | 12 VDC, 3 A |
| Connector type | barrel |
| Serial Port (UART) | yes, 4-pin header, unpopulated, CON2, 3.3V TTL, (19200,8,N,1) |
|
Flags: | |
|
Additional chips | |
| Other | |
|
Default IP address: 192.168.0.32 | |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
| Retail | |
| Availability | End of Sale |
| (Est.) release date | October 2007 |
For a list of all currently documented Cortina SoC's with specifications, see Cortina.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented D-Link devices with specifications, see D-Link.
Overview
USB 2.0 Type B port is used exclusively for Direct Attached Storage function.
See also: D-Link DNS series
Links of Interest
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
 | This device is NOT RECOMMENDED for future use with OpenWrt due to low flash/ram.
DO NOT BUY DEVICES WITH 8MB FLASH / 64MB RAM if you intend to flash an up-to-date and secure OpenWrt version onto it! See 8/64 warning for details. This device does not have sufficient resources (flash and/or RAM) to provide secure and reliable operation. This means that you will not be able to install many packages, and that you might experience crashes due to OOM situations more or less often. See OpenWrt on 8/64 devices what you can do now. |
Target: gemini
Subtarget: generic
Package architecture: arm_fa526
Supported Since Commit
Support started version: 18.06.0
Current supported version: 25.12.5
Subtarget: generic
Package architecture: arm_fa526
Supported Since Commit
Support started version: 18.06.0
Current supported version: 25.12.5
LAN Comment: Realtek RTL8211B Phy
WLAN Comment: No WLAN
Installation method(s):
see devicepage
Recovery method(s):
see devicepage
Comment:
Useful page: https://dflund.se/~triad/krad/dlink-dns-313/ the Flash is 512KB and boots from harddrive; A second SATA header is available on the PCB
WLAN Comment: No WLAN
Installation method(s):
see devicepage
Recovery method(s):
see devicepage
Comment:
Useful page: https://dflund.se/~triad/krad/dlink-dns-313/ the Flash is 512KB and boots from harddrive; A second SATA header is available on the PCB
| git • >> |
|---|
gemini: add 4.14 support
This adds the patches to get fairly complete Gemini support
using kernel v4.14. It is mainly a backport of patches from
kernel v4.16 with omissions of things like graphics that require
substantial changes and will be better handled once we move
to the v4.16 kernel proper.
On top of this are some WIP patches for USB support.
Tested on Raidsonic NAS4220B and D-link DNS-313.
ChangeLog v4->v5:
- Fix ethernet single gmac usecase
- Fix USB reset (patch from Hans)
- Fix Raidsonic ethernet skew delay
- Fix kernel config (bridge, squashfs, jffs2, usb)
- Disable second usb port on Raidsonic board until fotg210_hcd is fixed
ChangeLog v3->v4:
- Make sure to use tabs rather than spaces in base-files.
- Use the dns313 image tool from the firmware-utils.
- Break out the addition of the v4.14 patches and the removal
of the v4.4 patches to separate (big) patches.
ChangeLog v2->v3:
- Update the kernel config as indicated by Hauke Martens:
- Regenerate again after rebasing using kernel_oldconfig
dropping a few optimization settings that are now generic
- Drop CFG80211 stuff (module)
- Drop CIFS stuff (module)
- Drop MAC80211 (module)
- Drop wireless drivers (module)
- Enabled OverlayFS
- Added proper DNS-313 boot image generation with the special
file header tool.
- Disable CMA in the kernel
- Enable LZMA compression of the kernel
- Consequently name the nas4220b images nas4220b
- Update preinit MAC detection script to handle also DNS-313
- Add board.d/03_hdparm to set the disk to spin down after
1 minute by default, if we have the hdparm tool installed
ChangeLog v1->v2:
- Processed config through kernel_oldconfig
- Processed patches through make target/linux/{clean,refresh} V=99
Signed-off-by: Linus Walleij
Signed-off-by: Roman Yeryomin
|
