Foxconn J20H081

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC600)
WikiDevi.wi-cat.ru Foxconn J20H081
Platform
BrandModelRev Foxconn J20H081
Interface USB 2.0
Connector JST SM05B-GHS-TB (non-standard connector)
Form factor module
FCCID MCLJ20H081
ICID 2878D-J20H081
Chip1 MediaTek MT7650U

OUI: 80:56:F2 (-, 2 W)

MIMO status 1x1:1
Wireless Standards IEEE 802.11a/b/g/n/ac
802.11ac up to 433 Mbps
802.11n up to 150/150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other
Flags:
Bluetooth 3.0+EDR

Additional chips
5 GHz Front-End Module;Skyworks;SKY85703-11;SKY11, 85703, 303UY;1;

Probable Linux driver
mt7610u
(see also passys)

Windows driver
possibly see MediaTek's website
MTK keeps changing their site around,
there's probably nothing there right now

Retail
FCC approval date 25 October 2013
Country of manuf China

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented Foxconn devices with specifications, see Foxconn.

433 Mbps - 1SS 5GHz 802.11ac (80MHz chan.),
150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = AC600 class

Overview

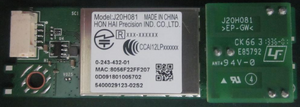

  • "Model: J20H081", "FCC ID: MCLJ20H081", "IC: 2878D-J20H081", "J20H081", "801489", "REV.0 GP", and a date code of 1337 is silkscreened on the board in the FCC photos.

A MAC label affixed to the device indicates usage of a 80:56:F2 (Hon Hai) OUI. It's presumed to be used.
