Foxconn WFUR6

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC1200)
Generic USB Wifi adapter.jpg
Platform
BrandModelRev Foxconn WFUR6
Interface USB 2.0
Connector Mini PCIe
Form factor (full)
FCCID RX3-WFUR6
ICID 2878F-WFUR6
Chip1 Realtek RTL8812AU

OUI: none specified

Antenna Connection U.FL
MIMO status 2x2:2
Wireless Standards IEEE 802.11a/b/g/n/ac
802.11ac up to 867 Mbps
802.11n up to 300/300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz

Additional chips
5GHz Front End Module;Skyworks;SKY85703-11;SKY11, 85703, 252WA;2;

Probable Linux driver
Realtek vendor driver (8812au)
Driver version 5.3.4 available on Edimax site
(select EW-7811UAC on Edimax download page)

See also aircrack-ng rtl8812au repo on GitHub
(see also passys)

Windows driver
see Realtek's website

Retail
End of Life date 11 April 2014
Country of manuf China

For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Foxconn devices with specifications, see Foxconn.

867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),
300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

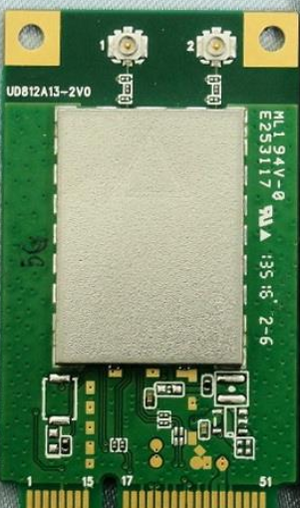

"UD812A13-2V0" is silkscreened on the board in the FCC photos.

This is noted as a USB 2.0 device in the FCC docs.
