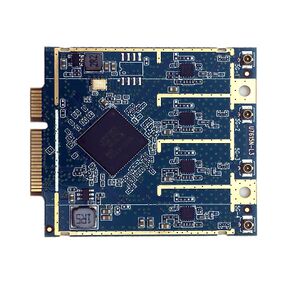

GGNet U7615N-L3

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
abgn+ac (AC2400)
MTK MT7615N 4x4 802.11ac Wave2 1733Mbps Mini PCIe NIC
Platform
BrandModelRev
GGNet U7615N-L3
Interface
Mini PCIe
Connector
Mini PCIe
Form factor
(oversized)
FCCID
none specified
Chip1

OUI: none specified

Antenna Connection
U.FL
MIMO status
4x4:4
Wireless Standards
IEEE 802.11a/b/g/n/ac
802.11ac
up to 867 Mbps
802.11n
up to 300/300 Mbps
802.11g
up to 54 Mbps
802.11b
up to 11 Mbps
802.11a
up to 54 Mbps
Operating Frequency
2.4 or 5 GHz

Additional chips
5GHz Front End Module (FEM);Skyworks;SKY85712-21;;4;

Probable Linux driver
unknown
(see also passys)

Windows driver
possibly see MediaTek's website
MTK keeps changing their site around,
there's probably nothing there right now

Retail
Country of manuf China
 Chip1 brandChip2 brand
GGNet U7615E-L1MediaTek
GGNet U7615N-L3MediaTek

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

1733 Mbps - 4SS 5GHz 802.11ac (80MHz chan.),
600 Mbps - 4SS 2.4GHz 802.11n (40MHz chan.) = AC2400 class
