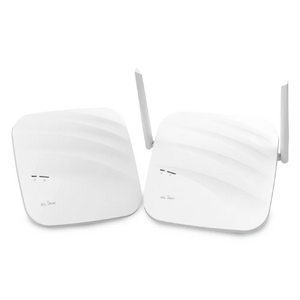

GL.iNet GL-AP1300
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac (AC1300) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Enterprise Wireless Networks Access Point | |||||||||||||
|
| |||||||||||||
| Homepage | Product page | ||||||||||||
| 3rd Party Firmware | |||||||||||||
| dd-wrt | Status Unknown | ||||||||||||
| OpenWrt | Supported | ||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||
| Gargoyle | Status Unknown | ||||||||||||
| Platform | |||||||||||||
| Brand • Model • Rev | GL.iNet GL-AP1300 (Cirrus) | ||||||||||||
| FCC ID | 2AFIW-AP1300 | ||||||||||||
| Type | access point | ||||||||||||
| CPU1 | Qualcomm IPQ4018 | ||||||||||||
| CPU1 Type | ARMv7 Cortex-A7 | ||||||||||||
| CPU1 Speed | 717 MHz ( 4 cores ) | ||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||
| Flash1 Size | 128 MiB 134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (NAND) | ||||||||||||
| Flash2 Size | 4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br /> (NOR) | ||||||||||||
| RAM1 Size | 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> | ||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||
| ETH chip1 | Qualcomm IPQ4018 | ||||||||||||
| Switch | Qualcomm Atheros QCA8075 | ||||||||||||
| Ethernet Port Count | 2-1GbE-LAN | ||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||
|
802dot11 OUI: none specified | |||||||||||||
| Stock bootloader | U-Boot | ||||||||||||
| Expansion IF types | none specified | ||||||||||||
| PoE | 802.3at, standard | ||||||||||||
| Power | 12 VDC, 2 A | ||||||||||||
| Serial Port (UART) | yes, 3.3V TTL, (115200 8N1) | ||||||||||||
|
Flags: | |||||||||||||
|
| |||||||||||||
| Other | |||||||||||||
|
| |||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||
| Retail | |||||||||||||
| Availability | End of Life | ||||||||||||
| (Est.) release date | 07 September 2023 | ||||||||||||
| ASIN |
B0CHJF8R4H | ||||||||||||
| Physical | |||||||||||||
| Dimensions | 11.42 x 8.54 x 2.17 inches | ||||||||||||
| Weight | 2.48 pounds | ||||||||||||
| Radio 1 | |||||||||||||
| Chip1 | Qualcomm IPQ4018 | ||||||||||||
| Wireless interface OUI | none specified | ||||||||||||
| Antenna Connector Type | none specified | ||||||||||||
| MIMO status | 2x2:2 | ||||||||||||
| Wireless Standard | IEEE 802.11b/g/n | ||||||||||||
| N-QAM | up to 400 Mbps | ||||||||||||
| 802.11n | up to 300 Mbps | ||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||
| WiFi Operating Frequency | 2.4 GHz | ||||||||||||
| Radio 2 | |||||||||||||
| Chip1 | Qualcomm IPQ4018 | ||||||||||||
| Wireless interface OUI | none specified | ||||||||||||
| Antenna Connector Type | none specified | ||||||||||||
| MIMO status | 2x2:2 | ||||||||||||
| Wireless Standard | IEEE 802.11a/n/ac | ||||||||||||
| 802.11ac | up to 867 Mbps | ||||||||||||
| 802.11n | up to 300 Mbps | ||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||
| WiFi Operating Frequency | 5 GHz | ||||||||||||
| |||||||||||||
For a list of all currently documented Qualcomm chipsets with specifications, see Qualcomm.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.
For a list of all currently documented GL.iNet devices with specifications, see GL.iNet.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: ipq40xx
OpenWrt Subtarget: generic
OpenWrt Package architecture: arm_cortex-a7_neon-vfpv4
Support started version: 21.02.0
Current supported version: 24.10.3
OpenWrt Subtarget: generic
OpenWrt Package architecture: arm_cortex-a7_neon-vfpv4
Support started version: 21.02.0
Current supported version: 24.10.3
Please insert instructions here
