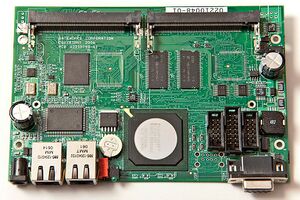

Gateworks Avila GW2342

From TechInfoDepot
Jump to navigationJump to search
Single-board Computer
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Was Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Gateworks Avila GW2342 B
Type single-board computer
CPU1 checkY Intel XScale IXP425
CPU1 Type ARM XScale
CPU1 Speed 533 MHz
Flash1 Chip Intel TE28F128J3C150
Flash1 Size 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />
RAM1 Size 64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />
RAM1 Chip Samsung K4S561632E-TC75 x 2
ETH chip1 Intel XScale IXP425
ETH chip2 Intel LXT973
Ethernet Port Count 1-100MbE-WAN
1-100MbE-LAN
Wired Standard IEEE 802.3i/3u

Ethernet OUI: 00:02:B3 (4 E, 7 W)

Stock bootloader RedBoot v1.92p1
Stock FW OS Linux 2.4.24-uc0
Expansion IF types Mini PCI, MicroUSB, CompactFlash, USB 2.0
Mini PCI slots 4
USB ports 1
Compact Flash Slots 1
USB Hub Compatible Untested
Power 6-28 VDC, ? A
Connector type barrel
Serial Port (UART) yes, DE-9, (115200 8N1)
JTAG Port yes, 14-pin header

Flags:
GPIO

Additional chips
Temperature Sensor and Single Channel ADC;Analog Devices;AD7418;;1;
3.3V high-speed non-inverting clock buffer;Pericom Semiconductor;PI49FCT3803;;1;
1.5A Low Dropout Positive Regulator;National Semiconductor;LM1086;;2;
+3V to +5.5V, 250kbps, RS-232 Transmitters/receivers;Intersil;ICL3232CV;;2;
Dual 30V N-Channel SyncFET;Fairchild Semiconductor;FDS6982S;;2;
Dual, 550kHz, 2-Phase Synchronous Regulator; Linear Technology;LTC3728L;;1;
4Kbit CMOS EEPROM with I2C-bus interface;Philips;PCF8594C-2;;1;

Other

Default IP address: 192.168.3.2

Manuf/OEM/ODM Gateworks
3rd Party Firmware Support OpenWrt (Was)
Retail
Availability End of Life
Country of manuf USA

For a list of all currently documented Intel chipsets with specifications, see Intel.
For a list of all currently documented Intel XScale SoC's with specifications, see Intel XScale.

For a list of all currently documented Gateworks devices with specifications, see Gateworks.

Links of Interest

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
OpenWrt Target: ixp4xx
OpenWrt Subtarget: generic
OpenWrt Package architecture: armeb_xscale
Support started version: 7.06
Current supported version: EOL
Last Supported Version: snapshot

Please insert instructions here
