Gemtek WMIA-194GN

From TechInfoDepot
Jump to navigationJump to search
bgn (N300)
Generic mini pci card icon.jpg
Platform
BrandModelRev Gemtek WMIA-194GN V03
Interface Mini PCI
Connector Mini PCI
Form factor (long)
FCCID K7SF5D8231-4
Chipset Atheros AR5008-3NG
Chip1 Atheros AR5416
Chip2 Atheros AR2133

OUI: 00:14:A5 (3 E, 25 W)

Antenna Connection U.FL
MIMO status 3x3:2
Wireless Standards IEEE 802.11b/g/n
802.11n up to 300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Other
Manuf/OEM/ODM Gemtek

Probable Linux driver
ath9k (in backports)
(see also passys)

Windows driver
see ath-drivers.eu

Retail
FCC approval date 05 May 2006
Country of manuf Taiwan
 FCC ID
Belkin F5D8231-4 v1K7SF5D8231-4
Linksys WRT300N v2K7SF5D8231-4

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.

For a list of all currently documented Gemtek devices with specifications, see Gemtek.

300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class

Overview

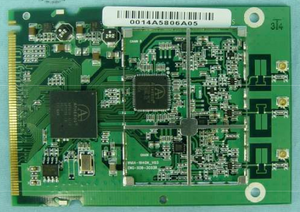

"WMIA-194GN_V03" is silkscreened on the board.
