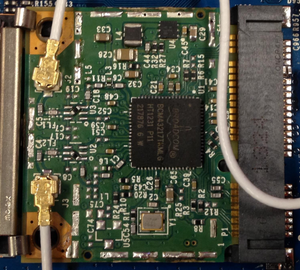

Gemtek WPEB-135N
From TechInfoDepot
Jump to navigationJump to search
| bgn (N300) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
| |||||||||||||||
| Platform | |||||||||||||||
| Brand • Model • Rev | Gemtek WPEB-135N | ||||||||||||||
| Interface | Mini PCIe | ||||||||||||||
| Connector | Mini PCIe | ||||||||||||||
| Form factor | (half) | ||||||||||||||
|
| |||||||||||||||
|
| |||||||||||||||
| FCCID | MXF-WPEB135N, RK9-WL9217 | ||||||||||||||
| ICID | 3069B-WPEB135N | ||||||||||||||
|
| |||||||||||||||
| Chip1 | Broadcom BCM43217T | ||||||||||||||
| Antenna Connection | U.FL | ||||||||||||||
| MIMO status | 2x2:2 | ||||||||||||||
| Wireless Standards | IEEE 802.11b/g/n | ||||||||||||||
| 802.11n | up to 300 Mbps | ||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||
| Operating Frequency | 2.4 GHz | ||||||||||||||
| Other | |||||||||||||||
| Manuf/OEM/ODM | Gemtek | ||||||||||||||
|
| |||||||||||||||
|
Probable Linux driver | |||||||||||||||
| Retail | |||||||||||||||
| FCC approval date | 11 February 2014 | ||||||||||||||
| Country of manuf | China | ||||||||||||||
| |||||||||||||||
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Gemtek devices with specifications, see Gemtek.
- • 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class
Overview
Silkscreened text on the back of the FCC EUT would seem to indicate this device is based on the Broadcom BCM943217HM4L reference design..
