Geniatech XPI-3566-Zero

abgn+ac (AX600)
Tiny RK3566 SBC
Homepage	Product page
WikiDevi.wi-cat.ru	Geniatech XPI-3566-Zero
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	Geniatech XPI-3566-Zero V1.01 (4/32GB)
FCC ID	none specified
Type	single-board computer
CPU1 N	Rockchip RK3566
CPU1 Type	ARM Cortex-A55
CPU1 Speed	1.8 GHz ( 4 cores ) 64-bit
Flash1 Chip	Samsung KLMBG2JETD-B041
Flash1 Size	32 GiB 32,768 MiB <br />34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br />
RAM1 Size	4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />
RAM1 Chip	Leahkinn LTHS00Q6GS4-ZPL2
802dot11 OUI: none specified
Stock bootloader	U-Boot 2016.09 gd961668129-230719
Stock FW OS	Linux 5.10.160 Debian 11
Expansion IF types	USB 2.0 (Type-C)
USB ports	1
USB Hub Compatible	Untested
Power	5 VDC, 2 A
Connector type	USB Female (Type-C)
Flags: Wi-Fi 5, Bluetooth 5.0, Mini HDMI 2.0, MIPI CSI, I2C, SPI, UART, GPIO
Other
Manuf/OEM/ODM	Shenzhen Geniatech
Retail
(Est.) release date	August 2023
(Est.) initial retail price (in USD):	$65
Country of manuf	China
Radio 1
Radio1 module	AMPAK AP6256
Radio1 module IF	SDIO 3.0 (module)
Chip1	Broadcom BCM43456
Wireless interface OUI	none specified
Antenna Connector Type	U.FL
MIMO status	1x1:1
Wireless Standard	IEEE 802.11a/b/g/n/ac
802.11ac	up to 433 Mbps
802.11n	up to 150 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	2.4 or 5 GHz

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.

• 287 Mbps - 1SS 2.4GHz 802.11ax (40MHz chan., 256-QAM),

• 600 Mbps - 1SS 5GHz 802.11ax (40MHz chan., 256-QAM) = AX600 class

Overview

RKS221221_V1.01 is on top of board.

See also: List of Single-board computers

Hardware specification

• CPU: Rockchip RK3566 @1.8GHz

Quad-Core ARM (Cortex-A55)

• GPU: Mali-G52 2EE (OpenGL ES3.2); NPU 0.8TOPS @INT8

VPU (with 4K VP9 and 4K 10-bit H265/H264 decoding)

• Storage: 32GB (eMMC 5.1) Flash
• Memory: 4GB (LPDDR4) SDRAM
• Wi-Fi: Broadcom BCM43456 (AMPAK AP6256)

802.11abgn/ac (1T1R) + BT 5.0 Combo SiP Module

• USB: 1x USB 2.0 (Type-C) Host,

1x USB 2.0 (Type-C) (OTG/Power) ports

• GPIO: 1x 40-pin headers
• Power Source: 5V/2A, USB (Type-C)

Links of Interest

• Spec.
• Geniatech XPI-3566-ZERO on CNX-Software
• Geniatech XPI-3566-Zero Review on Tom's Hardware
• The Geniatech XPI-3566-Zero on Tao Of Mac

Pictures

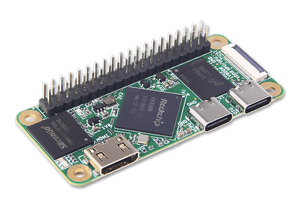

Retail Images

•
•
•
