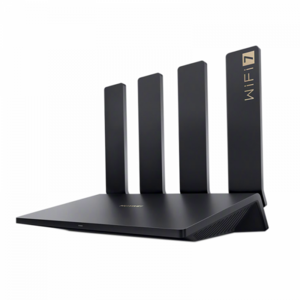

Huawei BE3 Pro

abgn+ac+ax+be (BE3600)
BE3600 Wi-Fi 7 Router
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	Huawei BE3 Pro
Model Part Number	DAYUA-BE32
FCC ID	none specified
Type	wireless router
CPU1	HiSilicon Hi5651T
CPU1 Speed	1.4 GHz ( 4 cores )
Flash1 Chip	Macronix MX35LF1GE4AB-Z4I
Flash1 Size	128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />
RAM1 Size	512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
RAM1 Chip	Zentel A3F4GH40ABF-WD
ETH chip1	HiSilicon Hi5651T
ETH chip2	Airoha LAD8821H
Switch	HiSilicon Hi5651T
Ethernet Port Count	1-2.5GbE-WAN 3-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab/3bz
802dot11 OUI: none specified
Expansion IF types	none specified
Power	12 VDC, 1.5 A
Connector type	barrel
Other
Default IP address: 192.168.3.1 the IP 192.168.3.1 is used by 31 additional devices of which 8 are Huawei devices
Retail
(Est.) release date	September 2023
(Est.) initial retail price (in USD):	$55
Country of manuf	China
Radio 1
Chip1	Qualcomm QCN6224
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11b/g/n/ax/be
802.11be	up to 688 Mbps
802.11ax	up to 574 Mbps
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz
Radio 2
Chip1	Qualcomm QCN6224
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11a/n/ac/ax/be
802.11be	up to 2882 Mbps
802.11ax	up to 1201 Mbps
802.11ac	up to 867 Mbps
802.11n	up to 300 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	5 GHz

For a list of all currently documented Airoha (EcoNet) chipsets with specifications, see Airoha.
For a list of all currently documented HiSilicon SoC's with specifications, see HiSilicon.
For a list of all currently documented Qualcomm chipsets with specifications, see Qualcomm.

For a list of all currently documented Huawei device with specifications, see Huawei.

• 2882 Mbps - 2SS 5/6GHz 802.11be (160MHz chan., 4096-QAM) =

• 688 Mbps - 2SS 2.4GHz 802.11be (40MHz chan.) = BE3600 class

Links of Interest

• Huawei BE3 Pro Teardown on AC|WiFi

See also

Huawei • HiSilicon • List of 802.11be Hardware

• Huawei BE3 Pro (DAYUA-BE32) • Wi-Fi 7 • BE3600, 2.5G • AC|WiFi

CPU: HiSilicon Hi5651T 4x @1.4HGz ARM (Cortex-A53), 128/512MB

WLAN: Qualcomm QCN6224 (2x 2T2R), 83C/83J (FEM), LAD8821H (2.5G)

• Huawei BE7 Pro (XIHE-BE72) • Wi-Fi 7 • BE6500, 2.5G • AC|WiFi

CPU: Qualcomm IPQ5322 4x @1.5HGz ARM (Cortex-A53), 128/512MB

WLAN: Qualcomm IPQ5322 (2T2R 2.4GHz)/QCN6224 (4T4R 5GHz)

LAN: Qualcomm QCA8386 (4x 2.5G WAN/LAN), 84J/84M (FEM)

• Huawei BE7 (XIHE-BE70) • Wi-Fi 7 • BE6500, 2.5G • AC|WiFi

CPU: Qualcomm IPQ5322 4x @1.5HGz ARM (Cortex-A53), 128/512MB

WLAN: Qualcomm IPQ5322 (2T2R 2.4GHz)/QCN6224 (4T4R 5GHz)

LAN: Qualcomm QCA8385 (2x 2.5G, 2x 1G WAN/LAN), 84J/84M (FEM)

• Huawei AX3 Pro (WS7200) (AX3000) • AC|WiFi • PPage

CPU: HiSilicon Hi5651T @1.4GHz (Quad-core ARM)

Flash/RAM: 128MB/256MB, 12V/2A,

WLAN: HiSilicon Hi1152 (2x 2T2R)

• Huawei AX3 (WS7100) (AX3000) • AC|WiFi • PPage

CPU: HiSilicon Hi5651L @1.2GHz (Dual-core ARM)

Flash/RAM: 128MB/128MB (in SoC), 12V/1A,

WLAN: HiSilicon Hi1152 (2x 2T2R)

• Huawei A2 (WS5800) (AC2200) • AC|WiFi

CPU: HiSilicon Hi5651T @1.4GHz (Quad-core ARM)

Flash/RAM: 128MB/256MB, 12V/2A,

WLAN: 3x HiSilicon Hi1151 (2x 2T2R)
