Intel Centrino Wireless-N 1030

From TechInfoDepot
Jump to navigationJump to search
bgn (N150)
Wireless-N 1030

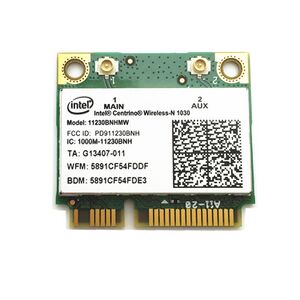

Intel Centrino Wireless-N 1030.jpg
Homepage Product page
WikiDevi.wi-cat.ru Intel Centrino Wireless-N 1030
Platform
BrandModelRev Intel 11230BNHMW
Interface Mini PCIe
Connector Mini PCIe
Form factor (half)

ID:8086:008a SS: 8086:5325
Windows: PCI\VEN_8086&DEV_008A&SUBSYS_53258086

FCCID PD911230BNH, PD911230BNHU
ICID 1000M-11230BNH
Chip1 Intel 82549MDE
Chip2 Intel JC82549RDE
Antenna Connection U.FL
MIMO status 1x2:2
Wireless Standards IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Other

Flags:
Bluetooth

Retail
FCC approval date 12 October 2010

For a list of all currently documented Intel chipsets with specifications, see Intel.

For a list of all currently documented Intel devices with specifications, see Intel.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

1x2:2 SIMO, bluetooth and 802.11n combo card

This card is used in the Dell 14R I14RN-8073DB. The PCI ID used in this entry is from that device.

The Dell P/N seems to be 07KGX9.

Notes

pci ids

008a Centrino Wireless-N 1030 [Rainbow Peak] 8086 5305 Centrino Wireless-N 1030 BGN 8086 5307 Centrino Wireless-N 1030 BG 8086 5325 Centrino Wireless-N 1030 BGN 8086 5327 Centrino Wireless-N 1030 BG 008b Centrino Wireless-N 1030 [Rainbow Peak] 8086 5315 Centrino Wireless-N 1030 BGN 8086 5317 Centrino Wireless-N 1030 BG

Variants

11230BNHMW (supports 802.11b/g/n) 11230BGHRU (supports 802.11b/g)
