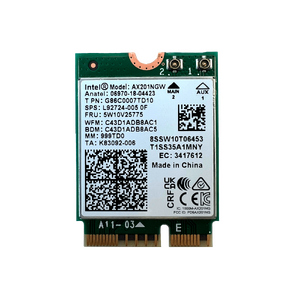

Intel Wi-Fi 6 AX201 (AX201D2W)
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac+ax (AX3000) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2x2 WLAN/BT PCIe M.2 1216 SD Adapter Card | |||||||||||||
|
| |||||||||||||
| Platform | |||||||||||||
| Brand • Model • Rev | Intel Wi-Fi 6 AX201 | ||||||||||||
| Model Part Number | AX201D2W | ||||||||||||
| Interface | M.2 | ||||||||||||
| Connector | M.2 (CNVio) SD | ||||||||||||
| Form factor | 1216 | ||||||||||||
|
| |||||||||||||
|
| |||||||||||||
| FCCID | PD9AX201D2, MSQAX201D2 | ||||||||||||
| ICID | 1000M‐AX201D2, 3658A-AX201D2 | ||||||||||||
|
| |||||||||||||
| Chip1 | Brand? Model? | ||||||||||||
| Antenna Connection | MHF4 | ||||||||||||
| MIMO status | 2x2:2 | ||||||||||||
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax | ||||||||||||
| 802.11ax | up to 574/2402 Mbps | ||||||||||||
| 802.11ac | up to 867 Mbps | ||||||||||||
| 802.11n | up to 300/300 Mbps | ||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||
| Operating Frequency | 2.4 or 5 GHz | ||||||||||||
| Other | |||||||||||||
Flags: | |||||||||||||
|
| |||||||||||||
|
Probable Linux driver | |||||||||||||
| Retail | |||||||||||||
| FCC approval date | 20 November 2018 | ||||||||||||
| Country of manuf | China | ||||||||||||
| |||||||||||||
For a list of all currently documented Intel devices with specifications, see Intel.
Overview
- Harrison Peak 2, SD (solder down)
This device was under short-term confidentiality, but that expired 05/19/2019 ⚠.
