multiple revisions of this device, use caution
abgn+ac (AC1200)
Open Source DIY Box
Homepage Product page
WikiDevi.wi-cat.ru Khadas VIM2 Max
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Gargoyle Status Unknown

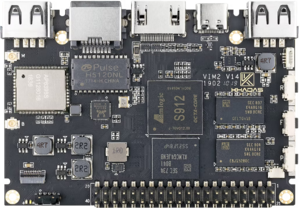

Platform
Brand • Model • Rev Khadas VIM2 Max
FCC ID none specified
Type media player
CPU1 checkY Amlogic S912
CPU1 Type ARMv8-A Cortex-A53
CPU1 Speed 1.5 GHz ( 8 cores ) 64-bit
Flash1 Chip Samsung KLMCG4JENB-B041
Flash1 Size 64 GiB 65,536 MiB <br />68,719,476,736 B <br />536,870,912 Kib <br />67,108,864 KiB <br />524,288 Mib <br /> (eMMC)
Flash2 Chip Winbond W25Q16FW
Flash2 Size 2 MiB2,097,152 B <br />16,384 Kib <br />2,048 KiB <br />16 Mib <br />0.00195 GiB <br />
RAM1 Size 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR4)
RAM1 Chip Samsung K4A8G165WB-BCRC x 2
RAM2 Size 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br />
RAM2 Chip Samsung K4A4G165WE-BCRC x 2
ETH chip1 Amlogic S912
ETH chip2 Realtek RTL8211FD
Ethernet Port Count 1-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: none specified
Ethernet OUI: 80:F4:DA

Stock bootloader U-Boot 2015.01 g17d7746
Stock FW OS Linux 3.14.29 Android 7.1
Expansion IF types USB 2.0, MicroSD Card slot
USB ports 2
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5-9 VDC, 3 A
Connector type USB (Type-C)
Serial Port (UART) yes, 3.3V TTL, (115200 8N1)

Flags:
Bluetooth 4.2, HDMI 2.0a, RTC, GPIO, IR remote

Additional chips
CMOS Real Time Clock;NXP;PCF8563;;1;
8-bit MCU, 8Kb Flash memory, 128b data EEPROM;ST;STM8S003;;1;
4-port USB 2.0 Hub Controller;Terminus Technology;FE8.1;;1;
Programmable Current Limit Switch;Silergy Corp;SY6874;;1;
Autoswitching Power Mux;Texas Instruments;TPS2115A;;1;
26V, 6A Synchronous Step-Down Converter;MPS;MP8756;;1;
18V, 2A Synchronous Step-Down Converter;Silergy Corp;SY8120B1;;4;
Ultra low dropout, 500mA, CMOS LDO;Will Semiconductor;WL2803E;;4;

Other
3rd Party Firmware Support Ubuntu
, LibreELEC, Fuchsia, Armbian (unofficial)
Retail
(Est.) release date August 2017
(Est.) initial retail price (in USD): $110
ASIN B07CXLGSW6
Country of manuf China
Radio 1
Radio1 module AMPAK AP6359SA
Radio1 module IF SDIO
Chip1 Broadcom BCM4359
Wireless interface OUI none specified
Antenna Connector Type U.FL
MIMO status 2x2:2
Wireless Standard IEEE 802.11a/b/g/n/ac
802.11ac up to 867 Mbps
802.11n up to 300/300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 2.4 or 5 GHz
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
Khadas VIM2 MaxAmlogicBroadcom
Khadas VIM2 Pro (v1.4)AmlogicBroadcom

For a list of all currently documented Amlogic chipsets with specifications, see Amlogic.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Khadas devices with specifications, see Khadas.

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.),
• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.) = AC1200 class

Overview

See also: Khadas, Amlogic and AMPAK

Specifications

  • CPU: Amlogic S912 @1.5GHz 64-bit Octa-Core (ARM Cortex-A53)
GPU: Mali-T820MP3 @750MHz; RAM: 3GB DDR4, Flash: 64GB eMMC
802.11abgn/ac (2.4/5GHz), 2T2R (867Mbps), BT 4.2
