Kickpi K5C

abgn+ac+ax (AX287)
Development Board for Handheld Terminals
Homepage	Product page
WikiDevi.wi-cat.ru	Kickpi K5C
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	Kickpi K5C V1.2
FCC ID	2AAHW-AW869A
Type	single-board computer, development board
CPU1 N	Allwinner A133
CPU1 Type	ARM Cortex-A53
CPU1 Speed	1.6 GHz ( 4 cores )
Flash1 Chip	Rayson RS70B08G3-S03F
Flash1 Size	8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC 5.1)
RAM1 Size	2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR3 SDRAM)
RAM1 Chip	Samsung K4B4G0846D-BYK0 x 4
ETH chip1	Allwinner A133
ETH chip2	Realtek RTL8211F
Ethernet Port Count	1-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
802dot11 OUI: none specified
Stock bootloader	U-Boot 2018.05
Stock FW OS	Linux 4.19.170 Android 10
Expansion IF types	Mini PCIe, USB 2.0, USB 2.0 (OTG), Micro SD Card slot, Micro SIM Card slot
SIM Card slot	1
Mini PCIe slots	1
USB ports	3
SD/MMC Slots	1
USB Hub Compatible	Untested
Power	12 VDC, 1 A
Connector type	barrel 5.5 mm (OD) 2.1 mm (ID) 9.5 mm (LEN)
Flags: Wi-Fi 6, Bluetooth 5.0, Micro SD Card slot, Micro SIM Card slot, LVDS, MIPI CSI/DSI, Audio out (3.5 mm), Audio in/out (JST 2.0), LiPo battery connector, RTC w/ battery, IR receiver, SPI, I2C, ADC, UART, GPIO
Additional chips I2C RTC;Haoyu Microelectronics;HYM8563TS;;1; 4-port USB Hub Controller;Genesys Logic;GL852G;;1; 350mA, 3.3V High Speed LDO Regulator;MicrOne;ME6212;;1; 5.5V, 2A Low Loss Power Distribution Switch;Silergy;SY6280;;2; 3W Mono Filter-less Class-D Audio Amplifier;ESMT;AD51652;;2; 2A, 1MHz Synchronous Step-Down Regulator;Silergy;SY8089A;;2; 3A, 500KHz Synchronous Step Down Regulator;Silergy;SY8113B;;2; PMIC for Multi-Core High-Performance System;X-Powers;AXP707;;1;
Retail
FCC approval date	14 April 2023
(Est.) release date	August 2025
(Est.) initial retail price (in USD):	$40
ASIN	B0G3ZP5KSF
Country of manuf	China
Radio 1
Radio1 module	Allwinner AW869A
Radio1 module IF	SDIO 2.0 (module)
Chip1	AIC AIC8800D
Wireless interface OUI	none specified
Antenna Connector Type	U.FL
MIMO status	1x1:1
Wireless Standard	IEEE 802.11a/b/g/n/ac/ax
802.11ax	up to 287 Mbps
802.11ac	up to 433 Mbps
802.11n	up to 150 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	2.4 or 5 GHz

For a list of all currently documented AIC chipsets with specifications, see AIC.
For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

• 287 Mbps - 1SS 2.4GHz 802.11ax (40MHz chan., 256-QAM) = AX287 class

Overview

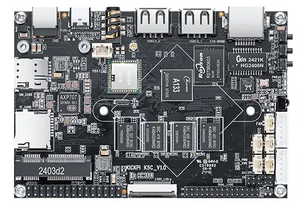

"KICKPI K5C_V1.2" is on top of board.

Hardware specification

• CPU: Allwinner A133 @1.6GHz

Quad-core ARM (Cortex-A53)

• GPU: Imagination PowerVR GE8300, supports

OpenGL ES 3.2, OpenCL 1.2, Vulkan 1.0

• Onboard Storage: 8GB eMMC 5.1 Flash,

TF card (max. 128GB) / MMC card slot

• Memory: 2GB (DDR3) SDRAM (4x Samsung)
• Wi-Fi: AIC AIC8800D40L (Allwinner AW869A)

802.11abgn/ac/ax (2.4/5GHz), BT 5.4 BLE

• USB: 2x USB 2.0, 1x USB 2.0 Type-C (OTG) ports
• PCIe: 1x mPCIe slot
• Network: 1x 1GbE port
• GPIO: 1x 30-pin connector
• Power: 12V/1A via barrel,

or 5V via USB Type-C (OTG),

or 3.4V LiPo battery

Links of Interest

• Documentation
