Kobol Helios4
From TechInfoDepot
Jump to navigationJump to search
|

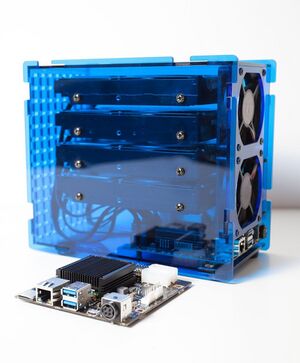

Open Source & Open Hardware Network Attached Storage | |
 | |
| Homepage | Product page |
|---|---|
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Partial Support |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |
| Brand • Model • Rev | Kobol Helios4 |
| Type | NAS |
CPU1  | Marvell 88F6828 |
| CPU1 Type | ARMv7 Cortex-A9 |
| CPU1 Speed | 1.6 GHz ( 2 cores ) |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 0 MiB 0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (MicroSD card slot) |
| Flash2 Size | 4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br /> |
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | Marvell 88F6828 |
| Ethernet Port Count | 1-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
|
| |
| Stock bootloader | U-Boot |
| Expansion IF types | microSDXC, USB 3.0, SATA 3.0 |
| USB ports | 2 |
| SD/MMC Slots | 1 |
| SATA Ports | 4 |
| USB Hub Compatible | Untested |
| Power | 12 VDC, 8 A |
| Serial Port (UART) | yes, (115200 8N1) |
|
| |
|
| |
| Other | |
|
| |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
| Retail | |
| Availability | End of Life |
For a list of all currently documented Marvell chipsets with specifications, see Marvell.
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
Target: mvebu
Subtarget: cortexa9
Package architecture: arm_cortex-a9_vfpv3-d16
Supported Since Commit
Support started version: 21.02.0
Current supported version: 24.10.5
Subtarget: cortexa9
Package architecture: arm_cortex-a9_vfpv3-d16
Supported Since Commit
Support started version: 21.02.0
Current supported version: 24.10.5
Unsupported Functions:
Fan control
WLAN Comment: No WLAN
Installation method(s):
SD card, see git-commit
Recovery method(s):
SD card
Fan control
WLAN Comment: No WLAN
Installation method(s):
SD card, see git-commit
Recovery method(s):
SD card
| git • >> |
|---|
mvebu: add Kobol Helios 4 device The Helios 4 is a NAS from Kobol that is powered by an Armada 38x MicroSOM from Solidrun, similarly to Clearfog. This device has: -Armada 38x CPU (dual core ARMv7 1.6 Ghz) -2 GB of ECC RAM -Gigabit ethernet (Marvell) -2x USB 3.0 ports -4x Sata 3.0 ports -i2c header (J9 |>GND|SDA|SCL|VCC) -2x 3-pin fan headers with PWM -micro-usb port is a TTL/UART to USB converter connected to TTL -MicroSD card slot -System, 4xSata and 1xUSB LEDs NOT WORKING: fan control Fan Control requires a kernel patch that is available in the Armbian project (the "default firmware" of this device) and named mvebu-gpio-remove-hardcoded -timer-assignment This patch isn't acceptable by OpenWrt, it should be upstreamed. I also have that patch in my own local OpenWrt builds, in case you want a more clean and less confusing patch for upstreaming. To install, write the disk image on a micro SD card with dd or win32 disk imager, insert the card in the slot. Check that the dip switch battery for boot selection is as follows Switch 1 and 2 down/off, switches 3, 4, 5 up/on. |
