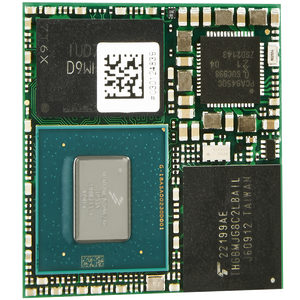

Kontron OSM-S/BL
From TechInfoDepot
Jump to navigationJump to search
| Single Board Computer | |
 | |
| Homepage | Product page |
|---|---|
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Supported |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |
| Brand • Model • Rev | Kontron OSM-S/BL |
| Type | SoM, single-board computer |
CPU1  | NXP i.MX8MP |
| CPU1 Type | ARM Cortex-A72 |
| CPU1 Speed | 1.6 GHz ( 4 cores ) |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 128 GiB 131,072 MiB <br />137,438,953,472 B <br />1,073,741,824 Kib <br />134,217,728 KiB <br />1,048,576 Mib <br /> (eMMC) |
| RAM1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (LPDDR4) |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | NXP i.MX8MP |
| Ethernet Port Count | 2-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
|
| |
| Stock bootloader | U-Boot |
| Expansion IF types | USB 2.0, USB 3.0, microSDHC, miniPCI |
| Mini PCIe slots | 1 |
| USB ports | 3 |
| SD/MMC Slots | 1 |
| USB Hub Compatible | Untested |
| Serial Port (UART) | yes, (115200 8N1) |
|
| |
|
| |
| Other | |
|
| |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
For a list of all currently documented NXP (Freescale) SoC's with specifications, see NXP.
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
 | The development branch can contain experimental code that is under active development and should not be used for production environments. Snapshot images may support additional hardware; however, it is experimental, considered unstable, and sometimes won't compile. |
| Prebuilt snapshot images do not come with any web interface or GUI. You will need to be comfortable using a command line and remote shell to install one yourself → How to install LuCI |
Target: imx
Subtarget: cortexa53
Package architecture: aarch64_cortex-a53
Supported Since Commit
Support started version: unknown
Current supported version: snapshot
Subtarget: cortexa53
Package architecture: aarch64_cortex-a53
Supported Since Commit
Support started version: unknown
Current supported version: snapshot
WLAN Hardware: none
Installation method(s):
see git-commit
Recovery method(s):
see git-commit
Installation method(s):
see git-commit
Recovery method(s):
see git-commit
| git • >> |
|---|
imx: add support for Kontron OSM-S/BL i.MX8MP
This adds support for the Kontron i.MX8MP OSM-S size system-on-module +
eval board.
CPU: NXP i.MX8MP @ 1600MHz (quad-core A53)
Memory: 4 (up to 8) GByte LPDDR4-RAM
Storage: 32 (up to 128) GByte eMMC + microSD slot
Ethernet: 2x 1 Gbit/s IEEE (1x with TSN)
UART: 1x UART console output on the Mini-B USB Debug Port
(signals are really UART on this Mini-B USB port!!!, there is
an adapter with ftdi available from Kontron)
1x RS232, 1x RS485
USB: 2x USB 2.0 Type-A, 1x USB 3.0 Type-C DRP
Misc: 8 (up to 128) kByte EEPROM (at24), RTC, 2x CAN, HDMI, 1x PCIe
This will create an SD card image for the board.
To use this image you have to bring the board to the recovery boot mode
(normal boot mode is eMMC). At the time of writing, the SoM (or the SoC)
has a bug that the FORCE_RECOVERY signal (switch S1 on the eval board)
doesn't work as long as the eMMC boot0 partition contains data.
Therefore you have to wipe this boot0 partition to be able to boot from
SD card. To do this call the following commands at uboot:
mmc dev 0 1
mmc erase 0 0x2000
After that, the system will try to boot from SD card.
Signed-off-by: Martin Schiller
|
