LG WN8522D1

From TechInfoDepot
Jump to navigationJump to search
abgn (AN600)
Platform
BrandModelRev LG WN8522D1
Interface USB 2.0
Connector (non-standard connector)
FCCID BEJWN8522D1
ICID 2703H-WN8522D1
Chip1 Broadcom BCM4323

OUI: E8:5B:5B (-, 1 W)

MIMO status 2x2:2
Wireless Standards IEEE 802.11a/b/g/n
802.11n up to 300/300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5, 60 --> GHz
Other
Manuf/OEM/ODM Arcadyan WN8522D1

Probable Linux driver
none, will not be supported by brcmfmac
(see also passys)

Windows driver
try 5.10.79.30 for XP or
5.100.68.46 for Vista/Win7
not working? let me know

Retail
FCC approval date 03 November 2010
Country of manuf China

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.

For a list of all currently documented LG devices with specifications, see LG.

300 Mbps - 2SS 5GHz 802.11n (40MHz chan.),
300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AN600 class

Overview

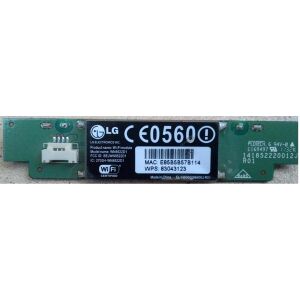

This is a WiFi module with built in antennas.

"141852220012J R01" is silkscreened on the board.
