| Single-board Computer | |||||||||||||
|
| |||||||||||||
| Homepage | Product page | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WikiDevi.wi-cat.ru | Libre Computer Le Potato | ||||||||||||
| 3rd Party Firmware | |||||||||||||
| dd-wrt | Status Unknown | ||||||||||||
| OpenWrt | Status Unknown | ||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||
| Gargoyle | Status Unknown | ||||||||||||
| Platform | |||||||||||||
| Brand • Model • Rev | Libre Computer AML-S905X-CC (Le Potato) | ||||||||||||
| Type | single-board computer | ||||||||||||
| CPU1 | Amlogic S905X | ||||||||||||
| CPU1 Type | ARMv8-A Cortex-A53 | ||||||||||||
| CPU1 Speed | 1.5 GHz ( 4 cores ) | ||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||
| Flash1 Size | 0 MiB 0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (eMMC module socket) | ||||||||||||
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> | ||||||||||||
| RAM1 Chip | SK hynix H5TQ4G63CFR-RDC x 4 | ||||||||||||
| ETH chip1 | Amlogic S905X | ||||||||||||
| Ethernet Port Count | 1-100MbE-LAN | ||||||||||||
| Wired Standard | IEEE 802.3i/3u | ||||||||||||
| Stock bootloader | U-Boot 2018.04 | ||||||||||||
| Stock FW OS | Linux 4.14.55 Ubuntu 18.04 | ||||||||||||
| Expansion IF types | USB 2.0, eMMC module connector, Micro SD Card slot | ||||||||||||
| USB ports | 4 | ||||||||||||
| SD/MMC Slots | 1 | ||||||||||||
| USB Hub Compatible | Untested | ||||||||||||
| Power | 5 VDC, 2 A | ||||||||||||
| Connector type | USB Female (Micro-B) | ||||||||||||
| Serial Port (UART) | yes, 3-pin header, populated, 3.3V TTL, (115200 8N1), | ||||||||||||
|
Flags: | |||||||||||||
|
Additional chips | |||||||||||||
| Other | |||||||||||||
|
| |||||||||||||
| 3rd Party Firmware Support |
Armbian, Debian , Android 7.1, LibreELEC | ||||||||||||
| Retail | |||||||||||||
| (Est.) release date | June 2017 | ||||||||||||
| (Est.) initial retail price (in USD): | $35 | ||||||||||||
| Country of manuf | China | ||||||||||||
| |||||||||||||
For a list of all currently documented Amlogic chipsets with specifications, see Amlogic.
For a list of all currently documented Libre Computer devices with specifications, see Libre Computer.
Overview

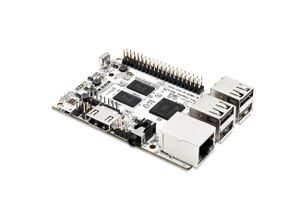

Libre Computer Board
AML-S905X-CC-V1.0-A is silkscreened on the board near the 40-pin GPIO connector.
See also: Amlogic and List of Single-board computers
Hardware specification
- CPU: Amlogic S905X @1.5GHz Quad-Core ARM (Cortex-A53)
- GPU: Mali-450 @750MHz (OpenGL ES 2.0, OpenVG 1.1)
- VPU (with 4K VP9 and 4K 10-bit H265/H264 decoding)
- Storage: TF card (64GB)/MMC card slot, eMMC module socket
- Memory: 2GB (DDR3) SDRAM • SK hynix
- Ports: 1x FE LAN, 4x USB 2.0 ports
Links of Interest
- AML-S905X-CC Le Potato: Fastest 4K SBC under $50 for Makers on Kickstarter
- AML-S905X-CC (Le Potato) on Wikipedia
- Libre Computer’s Le Potato Amlogic S905X Development Board Goes for $25 and Up (Crowdfunding) on CNX|Software
- Le Potato Development Board Review – Part 1: Hardware and Accessories on CNX|Software
